异构编队卫星近距离操作轨迹规划方法

doi:10.12305/j.issn.1001-506X.2024.03.31

摘要/Abstract

摘要：

针对编队卫星的空间在轨服务任务, 提出一种多类载荷异构星群的协同操作方案。首先, 考虑星间自主通信, 建立了由一颗主故障识别的观测卫星和多颗主维修补给的操作卫星构成的编队系统。其次, 提出一种基于循环交替策略的多星协同轨迹规划方法, 并基于差分进化算法优化了星群轨迹。最后, 结合算例仿真, 分析了系统内各成员卫星在编队控制过程中所需的脉冲大小以及编队系统整体的安全性能。仿真结果表明, 异构编队系统可快速规划出安全性较高、鲁棒性较强的在轨服务轨迹, 具有一定的工程应用价值。

关键词: 在轨服务, 编队飞行, 近距离操作, 进化算法

Abstract:

In view of the on-orbit service mission using formation satellites, a cooperative operation scheme for the multi payload heterogeneous satellite cluster is proposed. Firstly, considering the inter-satellite autonomous communication, a formation system consisting of an observation satellite for main fault identification and several operational satellites for main maintenance and replenishment is established. Secondly, a multi-satellite cooperative trajectory planning method based on cyclic alternating strategy is proposed, and the satellite trajectories are optimized based on differential evolution algorithm. Finally, combined with case simulation, the impulses required by each member satellite in the formation control process and the overall safety performance of the system are analyzed. The simulation results show that the heterogeneous formation system can quickly plan the in-orbit service trajectory with high safety and robustness, which has certain engineering application value.

Key words: on-orbit service, formation flying, proximity operation, evolutionary algorithm

中图分类号:

V412.4

王涵巍, 张嘉城, 朱阅訸. 异构编队卫星近距离操作轨迹规划方法[J]. 系统工程与电子技术, 2024, 46(3): 1048-1057.

Hanwei WANG, Jiacheng ZHANG, Yuehe ZHU. A trajectory planning method for proximity operations of heterogeneous formation satellites[J]. Systems Engineering and Electronics, 2024, 46(3): 1048-1057.

图/表 17

图1

图2

图3

表1

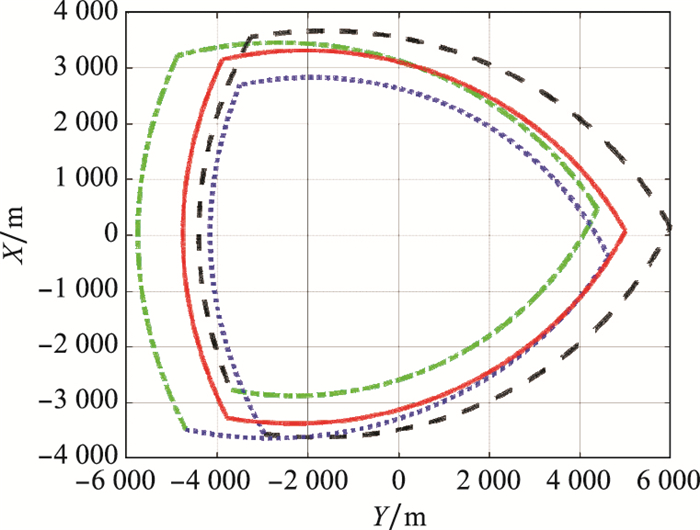

图4

图5

表2

表3

表4

图6

图7

图8

图9

图10

图11

图12

图13

参考文献 31

1	黄攀峰, 常海涛, 鹿振宇, 等. 面向在轨服务的可重构细胞卫星关键技术与展望[J]. 宇航学报, 2016, 37 (1): 1- 10.
	HUANG P F , CHANG H T , LU Z Y , et al. Key techniques of on-orbit service-oriented reconfigurable ceilularized satellite and its prospects[J]. Journal of Astronautics, 2016, 37 (1): 1- 10.
2	TRUSZKOWSKI W F , HINCHEY M G , RASH J L , et al. Autonomous and autonomic systems: a paradigm for future space exploration missions[J]. IEEE Trans. on Systems, Man and Cybernetics, Part C, 2006, 36 (3): 279- 291. doi: 10.1109/TSMCC.2006.871600
3	LI W J , CHENG D Y , LIU X G , et al. On-orbit service (OOS) of spacecraft: a review of engineering developments[J]. Progress in Aerospace Sciences, 2019, 108, 32- 120. doi: 10.1016/j.paerosci.2019.01.004
4	HATTY I . Viability of on-orbit servicing spacecraft to prolong the operational life of satellites[J]. Journal of Space Safety Engineering, 2022, 9 (2): 263- 268. doi: 10.1016/j.jsse.2022.02.011
5	HABLANI H B , TAPPER M L , DANA-BASHIAN D J . Gui-dance and relative navigation for autonomous rendezvous in a circular orbit[J]. Journal of Guidance, Control, and Dynamics, 2002, 25 (3): 553- 562. doi: 10.2514/2.4916
6	ZHANG R , HAN C , RAO Y R , et al. Spacecraft fast fly-around formations design using the bi-teardrop configuration[J]. Journal of Guidance, Control, and Dynamics, 2018, 41 (7): 1542- 1555. doi: 10.2514/1.G003236
7	李学辉, 宋申民. 慢旋非合作目标快速绕飞避碰控制[J]. 控制与决策, 2018, 33 (9): 1612- 1618.
	LI X H , SONG S M . Slowly rotating non-cooperative target fast fly-around collision avoidance control[J]. Control and Decision, 2018, 33 (9): 1612- 1618.
8	陶佳伟, 张涛. 具有预设性能的近距离星间相对姿轨耦合控制[J]. 系统工程与电子技术, 2019, 41 (5): 1103- 1109.
	TAO J W , ZHANG T . Coupled control of relative position and attitude for spacecraft proximity operations with prescribed performance[J]. Systems Engineering and Electronics, 2019, 41 (5): 1103- 1109.
9	SUN Z J , LUO Y Z , NIU Z Y . Spacecraft rendezvous trajectory safety quantitative performance index eliminating probability dilution[J]. Science China Technological Sciences, 2014, 57 (6): 1219- 1228. doi: 10.1007/s11431-014-5523-3
10	LUO Y Z , SUN Z J , ZHANG J . Proximity scenario design for geostationary rendezvous with collocated satellite avoidance[J]. Acta Astronautica, 2019, 154, 153- 168. doi: 10.1016/j.actaastro.2018.11.004
11	DANG Z H , FAN L , WANG Z K , et al. On the maximal and minimal distances of flying-around satellite formation[J]. Aircraft Engineering and Aerospace Technology, 2017, 89 (9): 845- 852.
12	HU Z L , YANG J Y . Distributed optimal formation algorithm for multi-satellites system with time-varying performance function[J]. International Journal of Control, 2020, 93 (5): 1015- 1026. doi: 10.1080/00207179.2018.1486512
13	CHEN A J , REN J D , WANG Z H , et al. Optimal satellite formation reconfiguration based on the uncertainty and distur-bance estimator[J]. Advances in Space Research, 2022, 70 (7): 2013- 2020. doi: 10.1016/j.asr.2022.06.050
14	ALEJANDRO M M , FRANCESCA S , CAMILLA C . Manoeuvre planning algorithm for satellite formations using mean relative orbital elements[J]. Advances in Space Research, 2022, 71 (1): 585- 603.
15	PARENTE D , SPILLER , D , CURTI F . Time-suboptimal sate-llite formation maneuvers using inverse dynamics and differen-tial evolution[J]. Journal of Guidance, Control, and Dyna-mics, 2018, 41 (5): 1108- 1121. doi: 10.2514/1.G003110
16	严冰, 张进, 罗亚中. 面向编队卫星的空间系绳在轨服务[J]. 系统工程与电子技术, 2021, 43 (3): 806- 813.
	YAN B , ZHANG J , LUO Y Z . On-orbit service for formation satellites with space tether[J]. Systems Engineering and Electronics, 2021, 43 (3): 806- 813.
17	LEE D , SANYAL A K , BUTCHER E A , et al. Asymptotic tracking control for spacecraft formation flying with decentra-lized collision avoidance[J]. Journal of Guidance, Control, and Dynamics, 2015, 38 (4): 587- 600. doi: 10.2514/1.G000101
18	李思远, 叶东, 孙兆伟. 考虑通信延迟的卫星集群改进蜂拥控制[J]. 宇航学报, 2022, 43 (8): 1097- 1108.
	LI S Y , YE D , SUN Z W . Improved flocking control for sate-llite cluster with communication delays[J]. Journal of Astronautics, 2022, 43 (8): 1097- 1108.
19	HAO Z W , YUE X K , WEN H W , et al. Full-state-constrained non-certainty-equivalent adaptive control for satellite swarm subject to input fault[J]. Journal of Automatica Sinica, 2022, 9 (3): 482- 495.
20	徐影, 张进. 旋转目标的多星协同近距离姿轨耦合控制[J]. 动力学与控制学报, 2021, 19 (2): 22- 31.
	XU Y , ZHANG J . Attitude-orbit coupling method for multisatellite collaborative proximity control of rotating target[J]. Journal of Dynamics and Control, 2021, 19 (2): 22- 31.
21	BENNETT T , SCHAUB H , ROSCOE C W T . Faster-than-natural spacecraft circumnavigation via way points[J]. Acta Astronautica, 2016, 123, 376- 386. doi: 10.1016/j.actaastro.2016.01.025
22	AHMED M O , DAE-KWAN K . Real-time fuel optimization and guidance for spacecraft rendezvous and docking[J]. Aerospace, 2022, 9 (5): 276- 293. doi: 10.3390/aerospace9050276
23	SHAMIL B , GLEB B , DMITRY P . Satellite formation flying for space advertising: from technically feasible to economically viable[J]. Aerospace, 2022, 9 (8): 419- 445. doi: 10.3390/aerospace9080419
24	BIKTIMIROV S , IVANOV D , PRITYKIN D . A satellite formation to display pixel images from the sky: mission design and control algorithms[J]. Advances in Space Research, 2022, 69 (11): 4026- 4044. doi: 10.1016/j.asr.2022.03.018
25	STORN R , PRICE K V . Differential evolution—a simple and efficient heuristic for global optimization over continuous spaces[J]. Journal of Global Optimization, 1997, 11 (4): 341- 359. doi: 10.1023/A:1008202821328
26	张冉, 殷建丰, 韩潮. 航天器受迫绕飞构型设计与控制[J]. 北京航空航天大学学报, 2017, 43 (10): 2030- 2039.
	ZHANG R , YIN J F , HAN C . Spacecraft forced fly-around formation design and control[J]. Journal of Beijing University of Aeronautics and Astronsutics, 2017, 43 (10): 2030- 2039.
27	HANCHEOL C . Energy-optimal reconfiguration of satellite formation flying in the presence of uncertainties[J]. Advances in Space Research, 2021, 67 (5): 1454- 1467. doi: 10.1016/j.asr.2020.11.036
28	SARNO S , GUO J , D'ERRICO M , et al. A guidance approach to satellite formation reconfiguration based on convex optimization and genetic algorithms[J]. Advances in Space Research, 2020, 65 (8): 2003- 2017. doi: 10.1016/j.asr.2020.01.033
29	CASTRO-PALACIO J C , ISIDRO J M , NAVARRO-PARDO E , et al. Monte carlo simulation of a modified chi distribution with unequal variances in the generating Gaussians: a discrete methodology to study collective response times[J]. Mathematics, 2021, 9 (1): 77.
30	YI B , GU D F , CHANG X , et al. Integrating BDS and GPS for precise relative orbit determination of LEO formation flying[J]. Chinese Journal of Aeronautics, 2018, 31 (10): 2013- 2022. doi: 10.1016/j.cja.2018.06.001
31	CORY T F , STEVE U . Adaptive extended Kalman filtering strategies for spacecraft formation relative navigation[J]. Acta Astronautica, 2021, 178, 700- 721. doi: 10.1016/j.actaastro.2020.10.016

参数	数值
目标轨道周期T₀/s	86 400
快速绕飞周期T/s	28 800
观测卫星对目标的期望绕飞半径R₁/m	5 000
操作卫星对观测卫星的绕飞半径R₂/m	1 000
绕飞期间卫星与目标最小距离/m	2 600
抵近交会转移时间/s	3 600
撤离重组转移时间/s	5 400

参数	数值
编队初始相位/(°)	220.901
第1段转移时间/s	10 407.893
第2段转移时间/s	10 546.165
第3段转移时间/s	78 459.412
操控星1初始相位/(°)	204.707
第1段转移相位/(°)	139.985
第2段转移相位/(°)	139.984
第3段转移相位/(°)	103.563

参数	数值
编队初始相位/(°)	0
第1段转移时间/s	9 600
第2段转移时间/s	9 600
第3段转移时间/s	9 600
操控星1初始相位/(°)	0
第1段转移相位/(°)	120
第2段转移相位/(°)	120
第3段转移相位/(°)	120

参数	本文方法	EAET方法
编队绕飞单圈总速度增量	19.663	20.760
观测卫星绕飞单圈所需总速度增量	4.907	5.192
操作卫星绕飞单圈所需速度增量平均值	4.918	5.272
操作卫星1绕飞单圈所需总速度增量	4.824	5.305
操作卫星2绕飞单圈所需总速度增量	5.017	5.134
操作卫星3绕飞单圈所需总速度增量	4.914	5.136
