多模式低副瓣阵列方向图综合方法

doi:10.12305/j.issn.1001-506X.2024.03.13

摘要/Abstract

摘要：

本文面向阵列天线低副瓣的实际应用需求, 利用空时编码的思路设计加权矢量, 分别提出序贯快速傅里叶变换(fast Fourier transform, FFT)方法、约束方程计算方法和优化函数求解方法, 对应多脉冲低副瓣方向图综合时加权矢量时变、不变和奇偶交替变的3种不同工作模式。理论分析和仿真实验表明, 序贯FFT和约束方程计算方法均能实现超低副瓣方向图(优于-50 dB), 而优化函数求解方法在实现低副瓣的同时仍能保持方向图主瓣的良好性能, 避免了传统方向图综合方法无法同时兼顾主副瓣性能的缺点。另外, 从计算复杂度、随机幅相误差、干扰抑制等各方面综合分析了不同方法的优缺点, 可为实际阵列天线的工程应用提供理论指导和技术参考。

关键词: 低副瓣, 主瓣宽度, 阵列加权矢量, 方向图综合

Abstract:

This paper is aimed at the practical application requirements of low sidelobe array antenna, using the idea of space-time coding to design weighting vector, sequential fast Fourier transform (FFT) method, constraint equation calculation method and optimization function solution method are proposed respectively, corresponding to three different working modes of multi-pulse low sidelobe pattern synthesis, the weighting vector is time-varying, invariant and even odd alternating. Theoretical analysis and simulation experiments show that both sequential FFT and constraint equation calculation methods can realize ultra-low sidelobe pattern (better than -50 dB). The optimization function solution method can achieve low sidelobe while still maintaining the good performance of the mainlobe of the pattern, avoiding the shortcoming that the traditional method cannot take into account the performance of the mainlobe and sidelobe at the same time. In addition, the advantages and disadvantages of different methods are comprehensively analyzed from the aspects of computational complexity, random amplitude and phase error, interference suppression, etc. It can provide theoretical guidance and technical reference for the engineering application of practical array antennas.

Key words: low sidelobe, mainlobe width, array weighted vector, pattern synthesis

中图分类号:

TN95

曾桂兰, 蒋彦雯, 范红旗, 冯一伦. 多模式低副瓣阵列方向图综合方法[J]. 系统工程与电子技术, 2024, 46(3): 882-891.

Guilan ZENG, Yanwen JIANG, Hongqi FAN, Yilun FENG. Multimode method for low sidelobe array pattern synthesis[J]. Systems Engineering and Electronics, 2024, 46(3): 882-891.

图/表 17

图1

图2

图3

图4

图5

表1

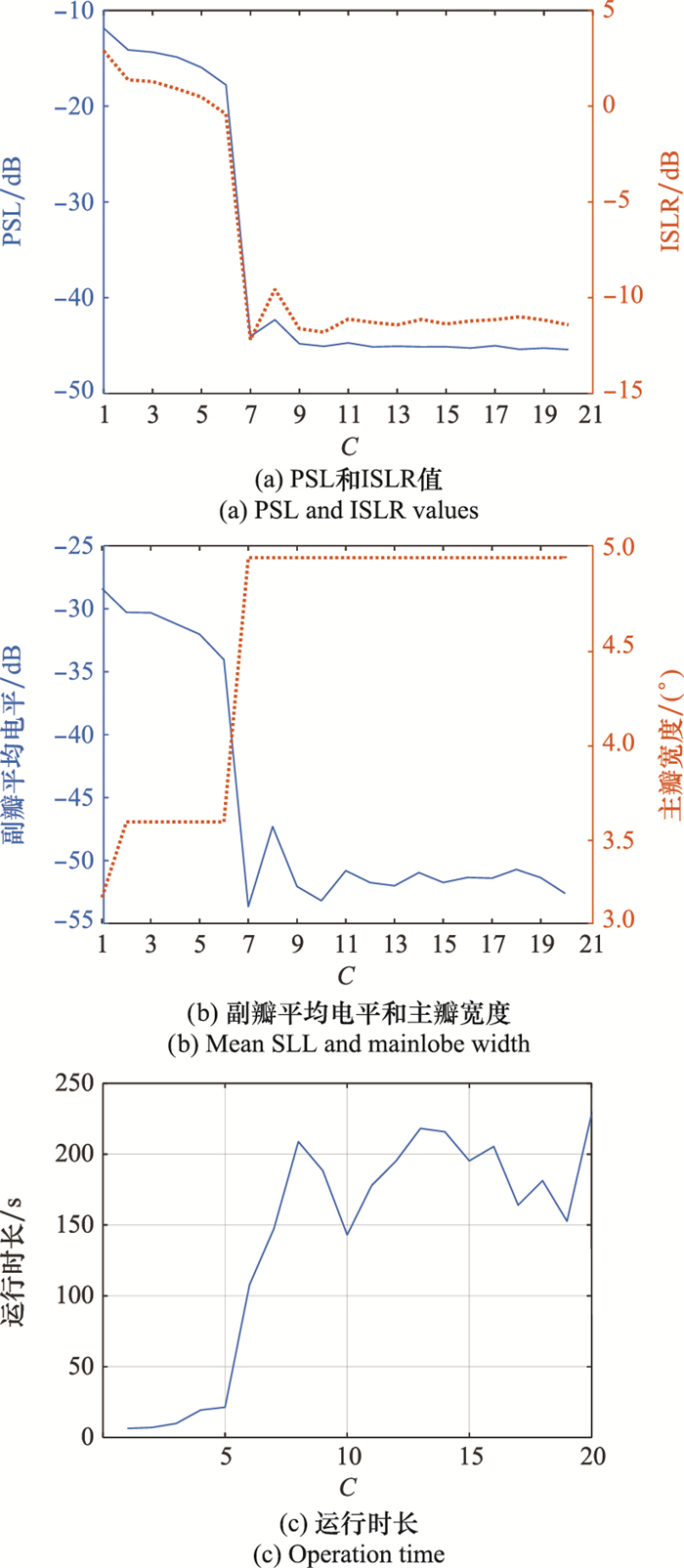

图6

图7

表2

图8

图9

图10

图11

图12

图13

表3

图14

参考文献 30

1	SLYUSAR V I. Origins of the digital antenna array theory[C]//Proc. of the 6th International Conference on Antenna Theory and Techniques, 2017.
2	李永祯, 刘业民, 邢世其, 等. 基于多接收机协同的无源测向及SAR欺骗干扰方法研究[J]. 系统工程与电子技术, 2023, 45 (12): 3792- 3805.
	LI Y Z , LIU Y M , XING S Q , et al. Research on passive direction finding and SAR deception jamming based on multi receiver cooperation[J]. Systems Engineering and Electronics, 2023, 45 (12): 3792- 3805.
3	狄凌松, 宋海博. 地面防空兵应对干扰吊舱和反辐射导弹的侧击战术策略理论分析[J]. 国防科技, 2021, 42 (6): 93- 98.
	DI L S , SONG H B . Theoretical analysis of side attack tactics of ground air defense forces against jamming pods and anti-radiation missiles[J]. Journal of Defense Science and Technology, 2021, 42 (6): 93- 98.
4	VILLENEUVE A T . Taylor patterns for discrete arrays[J]. IEEE Trans.on Antennas and Propagation, 1984, 32 (10): 1089- 1093. doi: 10.1109/TAP.1984.1143212
5	BAYLISS E T . Design of monopulse antenna difference patterns with low sidelobes[J]. Bell Labs Technical Journal, 1968, 47 (5): 623- 650.
6	ECHEVESTE J I , AZA M A G D , ZAPATA J . Array pattern synthesis of real antennas using the infinite-array approach and linear programming[J]. IEEE Trans.on Antennas and Propagation, 2015, 63 (12): 5417- 5424. doi: 10.1109/TAP.2015.2496106
7	张霞, 陶海红, 廖桂生. 一种任意阵的方向图综合方法[J]. 电子与信息学报, 2008, 30 (3): 738- 741.
	ZHANG X , TAO H H , LIAO G S . A pattern synthesis method for arbitrary array[J]. Journal of Electronics and Information, 2008, 30 (3): 738- 741.
8	WANG F , BALAKRISHNAN V , ZHOU P Y , et al. Optimal array pattern synthesis using semidefinite programming[J]. IEEE Trans.on Signal Processing, 2003, 51 (5): 1172- 1183. doi: 10.1109/TSP.2003.810308
9	韩荣苍. 基于遗传算法的阵列天线综合[D]. 成都: 电子科技大学, 2006.
	HAN R C. Synthesis of array antenna based on genetic algorithm[D]. Chengdu: University of Electronic Science and Technology of China, 2006.
10	李东风, 龚中麟. 遗传算法应用于超低副瓣线阵天线方向图综合[J]. 电子学报, 2003, 31 (1): 123- 126. doi: 10.3321/j.issn:0372-2112.2003.01.030
	LI D F , GONG Z L . Application of genetic algorithm to pattern synthesis of ultra-low sidelobe linear array antenna[J]. Chinese Journal of Electronics, 2003, 31 (1): 123- 126. doi: 10.3321/j.issn:0372-2112.2003.01.030
11	梁宇宏, 陈星, 温剑, 等. 改进遗传算法应用于超低副瓣天线阵的综合设计[J]. 微波学报, 2010, 26 (4): 47- 50.
	LIANG Y H , CHEN X , WEN J , et al. Application of improved genetic algorithm to the synthesis design of ultra-low sidelobe antenna array[J]. Journal of Microwave, 2010, 26 (4): 47- 50.
12	张立. 基于差分进化算法的天线优化设计技术[D]. 西安: 西安电子科技大学, 2011.
	ZHANG L. Antenna optimization design based on differential evolution algorithm[D]. Xi'an: Xidian University, 2011.
13	焦永昌, 杨科, 陈胜兵, 等. 粒子群优化算法用于阵列天线方向图综合设计[J]. 电波科学学报, 2006, 21 (1): 16- 20.
	JIAO Y C , YANG K , CHEN S B , et al. Application of particle swarm optimization algorithm to pattern synthesis design of array antenna[J]. Journal of Radio Wave Science, 2006, 21 (1): 16- 20.
14	CARROLL C W , KUMAR B . Iterative fourier transform phased array radar pattern synthesis[J]. Proceedings of SPIE-The International Society for Optical Engineering, 1987, 827, 73- 85.
15	BAGCHI S , MITRA S K . The nonuniform discrete Fourier transform and its applications in signal processing[M]. Netherlands: Kluwer Academic Publishers, 1999.
16	KEIZER W P M N . Low-sidelobe pattern synthesis using iterative Fourier techniques coded in Matlab[J]. IEEE Antennas & Propagation Magazine, 2009, 51 (2): 137- 150.
17	SAFAAI J , AHMAD S . A Fourier method for sidelobe reduction in equally spaced linear arrays[J]. Radio Science, 2018, 53 (3/4): 565- 576.
18	陈定. 一种改进的迭代傅里叶变换法在阵列低副瓣综合中的应用[J]. 现代雷达, 2022, 44 (4): 90- 94.
	CHEN D . Application of an improved iterative Fourier transform method in array low sidelobe synthesis[J]. Journal of Modern Radar, 2022, 44 (4): 90- 94.
19	ZHANG X , FITZ M P . Space-time code design with continuous phase modulation[J]. IEEE Journal on Selected Areas in Communications, 2003, 21 (5): 783- 792. doi: 10.1109/JSAC.2003.810343
20	RACHEL L , DESMOND P . Space-time coded systems using continuous phase modulation[J]. IEEE Trans.on Communications, 2007, 55 (11): 2047- 2051. doi: 10.1109/TCOMM.2007.908508
21	PILLAI S, DHANYA S, JEEMON B. Performance comparison of multicast MIMO systems employing spatial modulation and coded spatial modulation in fading channels[C]//Proc. of the International Conference on Intelligent Computing, Instrumentation and Control Technologies, 2017: 1529-1533.
22	XU J W , ZHANG Y H , LIAO G S , et al. Resolving range ambiguity via multiple-input multiple-output radar with element-pulse coding[J]. IEEE Trans.on Signal Processing, 2020, 68 (99): 2770- 2783.
23	LAN L, LIAO G S, XU J W, et al. Deceptive jammer suppression with MIMO radar using element-pulse coding[C]//Proc. of the IEEE Radar Conference, 2020.
24	XU J, CHENG H. Study on coding scheme with EPC-MIMO radar in clutter-free scenario[C]//Proc. of the IEEE 11th Sensor Array and Multichannel Signal Processing Workshop, 2020.
25	廖金玲, 廖桂生, 许京伟, 等. 基于EPC-MIMO编码设计的解距离模糊性能分析[J]. 系统工程与电子技术, 2022, 44 (7): 2166- 2174.
	LIAO J L , LIAO G S , XU J W , et al. Performance analysis of range ambiguity resolution based on EPC-MIMO coding design[J]. Systems Engineering and Electronics, 2022, 44 (7): 2166- 2174.
26	张洋, 位寅生, 于雷. 抗主瓣多假目标欺骗干扰EPC-MIMO波形自适应优化设计技术[J]. 电子学报, 2022, 50 (3): 513- 523.
	ZHANG Y , WEI Y S , YU L . Adaptive optimal design of EPC-MIMO waveform for anti main lobe multi decoy jamming[J]. Chinese Journal of Electronics, 2022, 50 (3): 513- 523.
27	丁鹭飞, 耿富录, 陈建春. 雷达原理[M]. 4版北京: 电子工业出版社, 2009.
	DING L F , GENG F L , CHEN J C . Principles of radar[M]. 4th ed Beijing: Electronic Industry Press, 2009.
28	李建新, 徐慧, 胡明春, 等. 基于FFT的阵列方向图快速计算[J]. 微波学报, 2007, 23 (1): 10- 15.
	LI J X , XU H , HU M C , et al. Fast calculation of array pattern based on FFT[J]. Journal of Microwave, 2007, 23 (1): 10- 15.
29	BAROTT W C , HIMEED B . Time-modulated array pattern for sidelobe blanking in spectrometry and radar[J]. IEEE Antennas & Wireless Propagation Letters, 2014, 13, 1015- 1018.
30	CHAKRABORTY A, MANDAL D, RAM G. Beam steering in a time switched antenna array with reduced side lobe level using evolutionary optimization technique[C]//Proc. of the IEEE Indian Conference on Antennas and Propagation, 2019.

零点状态	PSL/dB	ISLR/dB	副瓣平均电平/dB	主瓣宽度/(°)	运行时长/s
①	-42.1	-22.9	-123.8	6.8	0.65
②	-62.3	-31.6	-115.1	6.9	0.66
③	-51.4	-28.3	-137.1	7.3	0.67

方法指标	无调制	加汉明窗	序贯FFT方法p=100	约束方程计算方法零点②	优化函数求解方法C=9
PSL/dB	-13.2	-41.8	-51.4	-62.3	-44.8
ISLR/dB	0.1	-12.6	-19.7	-31.6	-11.6
副瓣平均电平/dB	-35.0	-52.8	-65.7	-115.1	-52.1
主瓣宽度/(°)	4.5	7.9	7.8	6.9	4.9
运行时长/s	0.01	0.01	1.00	0.65	185

编号	起始频率F₀/Hz	调频斜率v/(Hz/s)	到达角θ_s/(°)	幅值I/V
1	400	1 000	3	0.05
2	800	2 500	5	0.05
3	1 500	-2 000	65	3
4	1 800	-3 000	44	4
噪声	-	-	-	0.5 rms
