基于部分解耦合的非线性数字干扰对消算法

doi:10.12305/j.issn.1001-506X.2023.04.05

摘要/Abstract

摘要：

针对数字对消器中基于并行Hammerstein(parallel Hammerstein, PH)模型的非线性最小均方(least mean square, LMS)算法基函数之间的强相关性而存在收敛速度变慢、收敛稳定性变差、稳态误差增大的问题, 提出了一种采用部分解耦合策略的改进算法。通过引入带约束的正则方程, 实现各个非线性阶次独立的迭代步长设定。并且对基于部分解耦合干扰对消算法进行解析分析, 给出了平均和均方意义下的收敛条件。仿真结果表明, 所提方法在几乎不损失稳态误差性能的前提下, 提升了非线性LMS算法收敛速度, 改善了收敛性能, 并且针对滤波器非线性阶数和记忆长度变化具有良好的鲁棒性。在1 MHz带宽二进制相移键控(binary phase shift keying, BPSK)干扰和加性高斯白噪声情况下干噪比设置为20 dB, 相较于传统非线性LMS算法, 所提算法可以实现最大0.5倍迭代步长上界、最高非线性阶次9以及最大记忆长度12的设定。

关键词: 数字干扰对消, 最小均方算法, 非线性, 部分解耦合, 收敛特性分析

Abstract:

In view of the strong correlation between the basis functions of the nonlinear least mean square (LMS) algorithm based on the parallel Hammerstein (PH) model in the digital canceller, which has the problems of slow convergence speed, poor convergence stability and increased steady-state error, an improved algorithm using the partial decoupling strategy is proposed. By introducing a regular equation with constraints, the iterative step size of each nonlinear order can be set independently. The algorithm of interference cancellation based on partial decoupling is analyzed analytically, and the convergence conditions in the mean and mean square sense are given. The simulation results show that the proposed method improves the convergence speed and performance of nonlinear LMS algorithm without losing the steady-state error performance, and has good robustness against the change of nonlinear order and memory length of the filter. In the case of 1 MHz bandwidth binary phase shift keying (BPSK) interference and additive white Gaussian noise, the interference to noise ratio is set to 20 dB. Compared with the traditional nonlinear LMS algorithm, the proposed algorithm can achieve the setting of the upper bound of the maximum 0.5 times of iteration step length, the maximum nonlinear order 9 and the maximum memory length 12.

Key words: digital interference cancellation, least mean square (LMS) algorithm, nonlinearity, partially decouple, convergence property analysis

中图分类号:

TN911.7

崔中普, 葛松虎, 李亚星, 郭宇, 邢金岭, 孟进. 基于部分解耦合的非线性数字干扰对消算法[J]. 系统工程与电子技术, 2023, 45(4): 973-981.

Zhongpu CUI, Songhu GE, Yaxing LI, Yu GUO, Jinling XING, Jin MENG. Partially decoupling based nonlinear digital interference cancellation algorithm[J]. Systems Engineering and Electronics, 2023, 45(4): 973-981.

图/表 8

图1

图2

表1

表2

表3

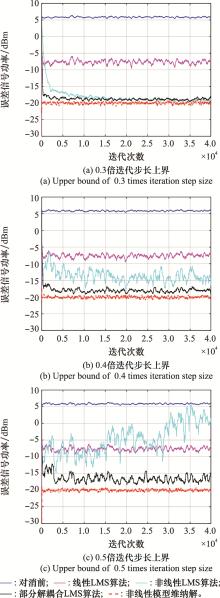

图3

图4

图5

参考文献 31

1	HE Y , ZHAO M Y , GUO W B . Performance analysis of nonlinear self-interference cancellation with timing error in full-duplex systems[J]. IEEE Wireless Communications Letters, 2021, 10 (5): 1075- 1078. doi: 10.1109/LWC.2021.3057893
2	KENNETH E K , BRADLEY T P , JEFFREY S H . In-band full-duplex technology: techniques and systems survey[J]. IEEE Trans.on Microwave Theory and Technology, 2019, 67 (7): 3025- 3041. doi: 10.1109/TMTT.2019.2896561
3	SABHARWAL A , SCHNITER P . In-band full-duplex wireless: challenges and opportunities[J]. IEEE Journal on Selected Areas in Communications, 2014, 32 (5): 1637- 1652.
4	LI D M , CHENG J L , VICTOR C M . Adaptive spectrum sharing for half-duplex and full-duplex cognitive radios: from the energy efficiency perspective[J]. IEEE Trans.on Communication, 2018, 66 (11): 5067- 5080. doi: 10.1109/TCOMM.2018.2843768
5	TONG Z , MARTIN H . Throughput analysis for full-duplex wireless networks with imperfect self-interference cancellation[J]. IEEE Trans.on Communication, 2015, 63 (11): 4490- 4500. doi: 10.1109/TCOMM.2015.2465903
6	LI Z , XIA Y L , PEI W J , et al. An augmented nonlinear LMS for digital self-interference cancellation in full-duplex direct-conversion transceivers[J]. IEEE Trans.on Signal Processing, 2018, 66 (15): 4065- 4078. doi: 10.1109/TSP.2018.2846250
7	GE S H , XING J L , LIU Y C , et al. Dual-stage co-site RF interference canceller for wideband direct-conversion receivers using reduced observation chain[J]. IEEE Trans.on Electromagnetic Compatibility, 2020, 62 (3): 923- 932. doi: 10.1109/TEMC.2019.2914369
8	DONGKYU K , HAESOON L , DAESIK H . A survey of in-band full-duplex transmission: from the perspective of PHY and MAC layers[J]. IEEE Communication Survey, 2015, 17 (4): 2017- 2046. doi: 10.1109/COMST.2015.2403614
9	EVERETT E , SAHAI A , SABHARWAL A . Passive self-interference suppression for full-duplex infrastructure nodes[J]. IEEE Trans.on Wireless Communications, 2014, 13 (2): 680- 694. doi: 10.1109/TWC.2013.010214.130226
10	ADNAN A , PARAG K . Protocol design for enabling full-duplex operation in next generation IEEE 802.11 WLANs[J]. IEEE System Journals, 2018, 12 (4): 3438- 3449. doi: 10.1109/JSYST.2017.2720462
11	KRIER J, RAND I, AKYILDIZ F. Active self-interference cancellation of passband signal using gradient descent[C]//Proc. of the IEEE 24th Annual International Symposium on Personal, Indoor, and Mobile Radio Communications, 2013: 1212-1216.
12	KAZUKI K , YUICHI M , HIDEYUKI U . Iterative nonlinear self-interference cncellation for in-band full-duplex wireless communications under mixer imbalance and amplifier nonlinearity[J]. IEEE Trans.on Wireless Communications, 2020, 19 (7): 4424- 4438. doi: 10.1109/TWC.2020.2983407
13	CUI Z P , GE S H , LI Y X , et al. Adaptive two-dimensional orthogonalization scheme for non-linear digital canceller in full-duplex radios[J]. Electronics Letters, 2021, 58 (6): 240- 242.
14	VOGT H , ENZNER G , SEZGIN A . State-space adaptive nonlinear self-interference cancellation for full-duplex communication[J]. IEEE Trans.on Signal Processing, 2019, 67 (11): 2810- 2825. doi: 10.1109/TSP.2019.2910490
15	AHMED E , ELTAWIL A . All-digital self-interference cancellation technique for full-duplex systems[J]. IEEE Trans.on Wireless Communications, 2015, 14 (7): 3519- 3532. doi: 10.1109/TWC.2015.2407876
16	LAURI A, DANI K, VILLE S, et al. Cancellation of power amplifier induced nonlinear self-interference in full-duplex transceivers[C]//Proc. of the Asilomar Conference on Signals, Systems and Computers, 2013: 1193-1198.
17	DING L , ZHOU G T , DENNIS R M , et al. A robust digital baseband predistorter constructed using memory polynomials[J]. IEEE Trans.on Communications, 2004, 52 (1): 159- 165. doi: 10.1109/TCOMM.2003.822188
18	MAHMOUD A , LAURI A , CHANCE T , et al. Low-complexity subband digital predistortion for spurious emission suppression in noncomtiguous spectrum access[J]. IEEE Trans.on Microwave Theory and Technology, 2016, 64 (11): 3501- 3517. doi: 10.1109/TMTT.2016.2602208
19	KAZUKI K , YUICHI M , HIDEYUKI U . Theoretical analysis of in-band full-duplex radios with parallel Hammerstein self-interference cancellers[J]. IEEE Trans.on Wireless Communications, 2021, 20 (10): 6772- 6786. doi: 10.1109/TWC.2021.3076496
20	LIU D, CHA H, WANG B B. A novel variable step length LMS algorithm based on arctangent compound function[C]//Proc. of the IEEE 5th Advanced Information Technology, Electronic and Automation Control Conference, 2021: 1691-1696.
21	ASHRAF A M, MOSTAFA M I, HESHAM F A. Performance study of adaptive filtering and noise cancellation of artifacts in ECG signals[C]//Proc. of the 17th International Conference on Advanced Communication Technology, 2015: 394-401.
22	SURYAIA R, MAMUNUR R, ZAHANGIR A. A unified analysis of the proposed wavelet transform domain LMS-algorithm for ARMA process[C]//Proc. of the 5th International Conference on Advances in Electrical Engineering, 2019: 195-200.
23	OZEN A, SOYSAL B, KAYA I. A fuzzy logic based channel estimation in Walsh-Hadamard transform employed OFDM systems[C]//Proc. of the IEEE 15th Signal Processing and Communications Applications, 2007.
24	GE S, CUI Z P, XING J L. Adaptive nonlinear digital interference cancellation with two dimensional orthogonalization for co-site radios[C]//Proc. of the IEEE MTT-S International Wireless Symposium, 2021.
25	LI Z, PEI W J, XIA Y L. Widely linear CLMS based cancellation of nonlinear self-interfereence in full-duplex direct-conversion transceivers[C]//Proc. of the IEEE International Conference on Acoustics, Speech and Signal Processing, 2018: 4329-4333.
26	LI Z , XIA Y L , PEI W J . An augmented nonlinear LMS for digital self-interference cancellation in full-duplex direct-conversion transceivers[J]. IEEE Trans.on Signal Processing, 2018, 66 (15): 4065- 4078. doi: 10.1109/TSP.2018.2846250
27	KORPI D, CHOI Y. Adaptive nonlinear digital self-interference cancellation for mobile inband full-duplex radio: algorithms and RF measurements[C]//Proc. of the IEEE Global Communication Conference, 2015.
28	GRIFFITH D W , ARCE G R . Partially decoupled Volterra filters: formulation and LMS adaption[J]. IEEE Trans.on Signal Processing, 1997, 45 (6): 1485- 1494. doi: 10.1109/78.599973
29	ZOU Y X, CHAN S C, SANG T S. Transform domain adaptive Volterra filter algorithm based on constrained optimization[C]//Proc. of the IEEE International Symposium on Circuits and Systems, 1999: 219-222.
30	GRIFFITH D W , ARCE G R . A partially decoupled RLS algorithm for Volterra filters[J]. IEEE Trans.on Signal Processing, 1999, 47 (2): 579- 582. doi: 10.1109/78.740147
31	LIU Y , QUAN X , PAN W S . Digital assisted analog interference cancellation for in-band full-duplex radios[J]. IEEE Communication Letters, 2017, 21 (5): 1079- 1082. doi: 10.1109/LCOMM.2017.2652444

阶次	线性模型维纳解			非线性模型维纳解			部分解耦合模型维纳解
阶次	0 dB	10 dB	20 dB	0 dB	10 dB	20 dB	0 dB	10 dB	20 dB
k=1	-19.394 1	-16.018 1	-7.937 4	-19.384 1	-16.018 1	-7.937 4	-19.384 1	-16.018 1	-7.937 4
k=3	-19.413 9	-16.034 8	-7.944 5	-20.015 9	-20.015 9	-19.992 1	-19.553 2	-19.7116	-19.051 1
k=5	-19.398 9	-15.987 7	-7.993 3	-19.983 1	-19.983 1	-20.026 0	-19.565 5	-19.806 8	-19.348 0
k=7	-19.383 9	-16.009 7	-7.985 8	-20.019 4	-20.019 4	-19.983 1	-19.555 1	-19.884 3	-19.408 6
k=9	-19.379 1	-16.006 6	-7.955 7	-19.970 0	-19.970 0	-19.969 6	-19.551 4	-19.886 5	-19.411 9

阶次	方法
阶次	线性LMS	非线性LMS	部分解耦合LMS
k=1	1.078 0	1.078 0	1.078 0
k=3	1.078 0	0.639 6	1.385 6
k=5	1.078 0	0.485 1	1.734 8
k=7	1.078 0	0.407 9	2.115 8
k=9	1.078 0	0.362 1	2.515 5

阶次	方法
阶次	线性LMS	非线性LMS	部分解耦合LMS
k=1	0.768 5	0.768 5	0.768 5
k=3	0.768 5	0.431 9	0.986 0
k=5	0.768 5	0.317 9	1.204 7
k=7	0.768 5	0.259 2	1.404 8
k=9	0.768 5	0.222 6	1.572 4
