海面背景下弱目标RCS估计及特性分析

doi:10.12305/j.issn.1001-506X.2023.02.13

系统工程与电子技术 ›› 2023, Vol. 45 ›› Issue (2): 424-430.doi: 10.12305/j.issn.1001-506X.2023.02.13

• 传感器与信号处理 • 上一篇

海面背景下弱目标RCS估计及特性分析

黎鑫¹^,²^,*, 夏晓云¹^,², 张玉石¹, 水鹏朗²

1. 中国电波传播研究所电波环境特性及模化技术重点实验室, 山东青岛 266107
2. 西安电子科技大学电子工程学院, 陕西西安 710071

收稿日期:2021-09-01 出版日期:2023-01-13 发布日期:2023-02-04
通讯作者: 黎鑫
作者简介:黎鑫 (1983—), 男, 高级工程师, 博士研究生, 主要研究方向为海杂波测量与建模、海面目标特性分析
夏晓云 (1990—), 女, 工程师, 博士研究生, 主要研究方向为海杂波数据处理分析、海面目标检测
张玉石 (1978—), 男, 研究员级高级工程师, 博士, 主要研究方向为地海杂波测试系统与方法、海杂波特性分析与建模
水鹏朗 (1967—), 男, 教授, 博士, 主要研究方向为雷达目标检测、时频分析与图像处理

RCS estimation and characteristic analysis of weak target under sea background

Xin LI¹^,²^,*, Xiaoyun XIA¹^,², Yushi ZHANG¹, Penglang SHUI²

1. National Key Laboratory of Electromagnetic Environment, China Research Institute of Radiowave Propagation, Qingdao 266107, China
2. School of Electronic Engineering, Xidian University, Xi'an 710071, China

Received:2021-09-01 Online:2023-01-13 Published:2023-02-04
Contact: Xin LI

摘要/Abstract

摘要：

雷达截面积(radar cross section, RCS)可以为武器装备设计提供支撑。因此, 许多国家都建立了标准测试场, 可以满足大多数目标RCS测量的需要。对于海面背景下的非合作弱目标而言, 只能依赖实际测试来获取目标RCS, 但有时会面临多径干扰和信号弱的问题。针对该问题, 在海上外定标和目标信杂比改善基础上, 提出了一种目标RCS估计方法。设计并开展了海上目标RCS测量试验, 并对测试数据进行了分析, 验证了新方法的有效性, 同时给出了弱目标RCS起伏特性的定性描述。

关键词: 雷达截面积, 海面背景, 弱目标, 外定标

Abstract:

The radar cross section(RCS) can provide a support for the design of weapons. Therefore, standard test sites have been established by many countries for the needs of most target RCS measurements. In terms of the non-cooperative weak target in a sea background, it can only rely on actual tests to obtain the target RCS for the problems of multipath interference and weak signal. In response to the current problem, a target RCS estimation method is proposed based on the offshore external calibration and the signal to clutter ratio improvement of the target. Meanwhile, an RCS experiment is designed and carried out on the sea surface. From the analysis of the measured RCS data, the results verify the effectiveness of the new method. Moreover, a qualitative description on the fluctuation characteristics of weak target RCS based on the coherent accumulation gain is given.

Key words: radar cross section (RCS), sea background, weak target, external calibration

中图分类号:

TN957.51

黎鑫, 夏晓云, 张玉石, 水鹏朗. 海面背景下弱目标RCS估计及特性分析[J]. 系统工程与电子技术, 2023, 45(2): 424-430.

Xin LI, Xiaoyun XIA, Yushi ZHANG, Penglang SHUI. RCS estimation and characteristic analysis of weak target under sea background[J]. Systems Engineering and Electronics, 2023, 45(2): 424-430.

图/表 11

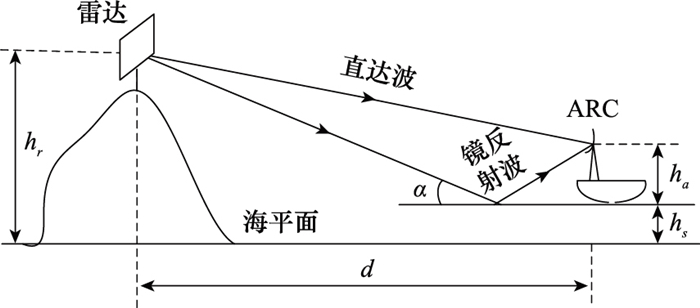

图1

图2

图3

图4

图5

表1

图6

图7

图8

表2

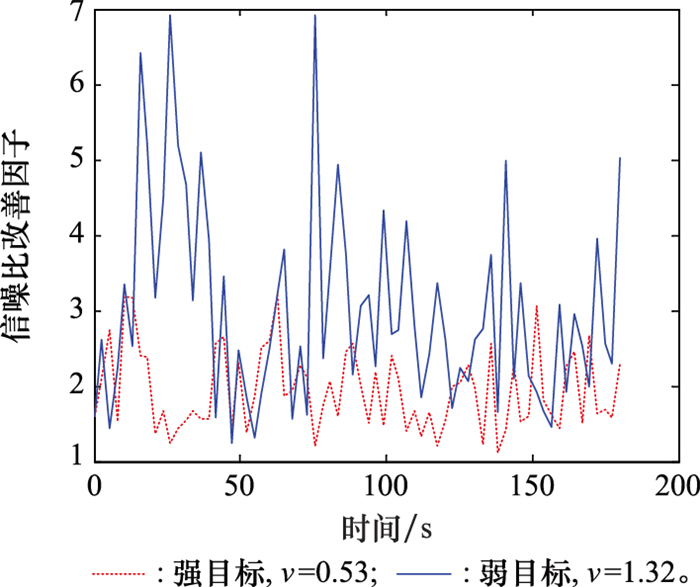

图9

参考文献 31

1	SUBHANKAR S , RABINDRANTH B , BONSIBADAN M , et al. Embedded digital MIMO radar using SDR for target detection and RCS measurement[J]. IETE Journal of Research, 2015, 62 (1): 100- 105.
2	ZUO Y C , GUO L X , LIU W , et al. Position error detection and compensation for far-field radar cross-section measurement[J]. IEEE Antennas and Wireless Propagation Letters, 2021, 20 (8): 1518- 1522. doi: 10.1109/LAWP.2021.3089514
3	MARCO I, MARTA T F. RCS analysis of 3-dimensional ship for SAR performance evaluation[C]//Proc. of the 13th European Conference on Synthetic Aperture Radar, 2021.
4	LEE S J , JEONG S J , KANG B S , et al. Classification of shell-shaped targets using RCS and fuzzy classifier[J]. IEEE Trans.on Antennas & Propagation, 2016, 64 (4): 1434- 1443.
5	MICHAL M . On Bayesian tracking and prediction of radar cross section[J]. IEEE Trans.on Aerospace and Electronic Systems, 2019, 55 (4): 1756- 1768. doi: 10.1109/TAES.2018.2875572
6	CHEN J , XU S Y , CHEN Z P . Convolutional neural network for classifying space target of the same shape by using RCS time series[J]. IET Radar, Sonar and Navigation, 2018, 12 (11): 1268- 1275. doi: 10.1049/iet-rsn.2018.5237
7	CAO X M , YI J X , GONG Z P , et al. Data fusion of target characteristic in multistatic passive radar[J]. Journal of Systems Engineering and Electronics, 2021, 32 (4): 811- 821. doi: 10.23919/JSEE.2021.000070
8	MICHAEL M , MARTIN U , WOLFGANG K . Ground target tracking with RCS estimation based on signal strength measurements[J]. IEEE Trans.on Aerospace and Electronic Systems, 2016, 52 (1): 205- 220. doi: 10.1109/TAES.2015.140866
9	RAJABALIPANAH H , ABODOLALI A . Ultrabroadband monostatic/bistatic RCS reduction via high-entropy phase-encoded polarization conversion metasurfaces[J]. IEEE Antennas Wireless Propagation Letters, 2019, 18 (6): 1233- 1237. doi: 10.1109/LAWP.2019.2913465
10	KONG S Y , HU C , WANG R , et al. Insect multifrequency polarimetric radar cross section: experimental results and analysis[J]. IEEE Trans.on Geoscience and Remote Sensing, 2021, 59 (8): 6573- 6585. doi: 10.1109/TGRS.2020.3025293
11	NOH Y H , KIM W , TAE H S , et al. RCS Feature extraction using discretized point scatterer with compressive sensing[J]. IEEE Antennas Wireless Propagation Letters, 2021, 20 (2): 165- 168. doi: 10.1109/LAWP.2020.3042767
12	GONG J K , YAN J , LI D R , et al. Using radar signatures to classify bird flight modes between flapping and gliding[J]. IEEE Geoscience and Remote Sensing Letters, 2020, 17 (9): 1518- 1522. doi: 10.1109/LGRS.2019.2949027
13	CAI X Z , GIALLORENZO M , SARABANDI K . Machine learning-based target classification for MMW radar in autonomous driving[J]. IEEE Trans.on Intelligent Vehicles, 2021, 6 (4): 678- 689. doi: 10.1109/TIV.2020.3048944
14	SALSKI B , CUPER J , KOPYT P , et al. Radar cross-section of sports balls in 0.8~40 GHz range[J]. IEEE Sensors Journal, 2018, 18 (18): 7467- 7475. doi: 10.1109/JSEN.2018.2862142
15	HE W T , WENG X L , LUO W , et al. Investigation of radar cross-section reduction for dihedral corner reflectors based on camouflage grass[J]. IEEE Antennas and Wireless Propagation Letters, 2021, 20 (12): 2447- 2451. doi: 10.1109/LAWP.2021.3114302
16	GAETANO M , ROSARIO D N , GIUSEPPE N , et al. Multifrequency experimental analysis (10 to 77 GHz) on the asphalt reflectivity and RCS of FOD targets[J]. IEEE Geoscience and Remote Sensing Letters, 2017, 14 (9): 1441- 1443. doi: 10.1109/LGRS.2017.2699282
17	黄培康, 殷红成, 许小剑. 雷达目标特性[M]. 北京: 电子工业出版社, 2004: 22- 23.
	HUANG P K , YIN H C , XU X J . Radar target characteristics[M]. Beijing: Electronic Industry Press, 2004: 22- 23.
18	KLEINMAN R E . The Rayleigh region[J]. Proceedings.of the IEEE, 1965, 53 (8): 848- 856. doi: 10.1109/PROC.1965.4063
19	CRISPIN J W , SIEGEL K M . Methods of radar cross section analysis[M]. New York: Academic Press, 1968: 144- 152.
20	KNOTT E F . A progression of high-frequency RCS prediction techniques[J]. Proceedings.of the IEEE, 1985, 73 (2): 252- 264. doi: 10.1109/PROC.1985.13137
21	GUPTA I J , BURNSIDE W D . Physical optics correction for backscattering from curved surfaces[J]. IEEE Trans.on Antennas and Propagation, 1987, 35 (5): 553- 561. doi: 10.1109/TAP.1987.1144142
22	ZHANG Q, WANG D, ZHOU Y W. A method of RCS mea-surement in the outfield[C]// Proc. of the 3rd World Conference on Mechanical Engineering and Intelligent Manufacturing, 2020.
23	WEI G Y, YUAN W Z, GAO F, et al. An accurate monostatic RCS measur ement method based on the extrapolation technique[C]// Proc. of the IEEE 9th International Conference on Communication Software and Networks, 2017: 784-788.
24	WALTON E K . IEEE Standard 1502-2007: IEEE recommended practice for radar cross-section test procedures[J]. IEEE Antennas & Propagation Magazine, 2021, 63 (2): 106.
25	VICENTE R . Basic rules for indoor anechoic chamber design[J]. IEEE Antennas and Propagation Magazine, 2016, 58 (6): 82- 93. doi: 10.1109/MAP.2016.2609821
26	许小剑. 雷达目标散射特性测量与处理新技术[M]. 北京: 国防工业出版社, 2017: 21- 27.
	XU X J . New techniques for radar target scattering signature measurement and processing[M]. Beijing: National Defense Industry Press, 2017: 21- 27.
27	张浙东, 黎鑫, 张金鹏, 等. 基于姿态修正的目标RCS动态测量方法[J]. 系统工程与电子技术, 2019, 41 (6): 1242- 1248.
	ZHANG Z D , LI X , ZHANG J P , et al. Dynamic measurement method of target RCS based on attitude correction[J]. Systems Engineering and Electronics, 2019, 41 (6): 1242- 1248.
28	杨勇, 王雪松, 张文明, 等. 多径环境下海面低空目标检测技术研究[J]. 电波科学学报, 2011, 26 (3): 443- 449.
	YANG Y , WANG X S , ZHANG W M , et al. Detection technology of low-flying target on the sea in multipath environment[J]. Chinese Journal of Radio Science, 2011, 26 (3): 443- 449.
29	李清亮, 尹志盈, 朱秀芹, 等. 雷达地海杂波测量与建模[M]. 北京: 国防工业出版社, 2017: 142- 143.
	LI Q L , YIN Z Y , ZHU X Q , et al. Measurement and modeling of radar clutter from land and sea[M]. Beijing: National Defense Industry Press, 2017: 142- 143.
30	BECKMANN P, SPIZZICHINO A. Scattering of electromagnetic waves from rough surface[M]. Oxford: Pergamon Press Limited, 1963.
31	LI X , SHUI P L , ZHANG Z D , et al. External calibration of P-band island-based sea clutter measurement radar on the sea surface[J]. IEEE Trans.on Geoscience and Remote Sensing, 2021, 59 (7): 5711- 5720. doi: 10.1109/TGRS.2020.3023714

L	A	B	C	D	均值/标准差
修正前	14.9	- -1.50 -1.89 -	- -3.68 -3.24 -	0.52 -0.24 0.87 0.58	0.70/5.58
修正后	8.09	- 8.53 8.14 -	- 7.75 8.19 -	8.59 7.82 8.94 8.65	8.30/0.40

名称	单脉冲	DFT(64)	DFT(512)
均值	0.110 4	0.112 5	0.111 9
标准差	0.114 5	0.103 9	0.058 9
