基于国内宽带VLBI2010系统及iGMAS的UT1/ΔLOD数据融合方法

doi:10.12305/j.issn.1001-506X.2022.05.26

系统工程与电子技术 ›› 2022, Vol. 44 ›› Issue (5): 1644-1651.doi: 10.12305/j.issn.1001-506X.2022.05.26

基于国内宽带VLBI2010系统及iGMAS的UT1/ΔLOD数据融合方法

李西顺^1,², 吴元伟^1,^3,*, 姚当^1,², 刘佳^1,³, 马浪明^1,³, 杨旭海^1,³, 张首刚^1,⁴

1. 中国科学院国家授时中心, 陕西西安 710600
2. 中国科学院大学电子电气与通信工程学院, 北京 100049
3. 中国科学院精密导航定位与定时技术重点实验室, 陕西西安 710600
4. 中国科学院时间频率基准重点实验室, 陕西西安 710600

收稿日期:2021-06-23 出版日期:2022-05-01 发布日期:2022-05-16
通讯作者: 吴元伟
作者简介:李西顺(1995—), 男, 博士研究生, 主要研究方向为世界时UT1的解算及精度提升|吴元伟(1983—), 男, 研究员, 硕士研究生导师, 博士, 主要研究方向为世界时UT1的测定、VLBI天体测量|姚当(1990—), 男, 博士, 主要研究方向为世界时UT1的解算|刘佳(1991—), 女, 工程师, 博士研究生, 主要研究方向为VLBI数据处理|马浪明(1985—), 男, 高级工程师, 博士研究生, 主要研究方向为无限电干涉测量技术|杨旭海(1972—), 男, 研究员, 博士研究生导师, 博士, 主要研究方向为高精度时间传递与精密测轨技术、精密定轨理论与方法|张首刚(1966—), 男, 研究员, 博士研究生导师, 博士, 主要研究方向为量子频标研制
基金资助:
国家自然科学基金面上项目(12073034);中国科学院一带一路团队项目(XAB2018YDYL01)

UT1/ΔLOD data combination method with domestic broadband VLBI2010 system and iGMAS

Xishun LI^1,², Yuanwei WU^1,^3,*, Dang YAO^1,², Jia LIU^1,³, Langming MA^1,³, Xuhai YANG^1,³, Shougang ZHANG^1,⁴

1. National Time Service Center, Chinese Academy of Sciences, Xi'an 710600, China
2. School of Electronic, Electrical and Communication Engineering, University of Chinese Academy of Sciences. Beijing 100049, China
3. Key Laboratory Positioning and Timing Technology, Chinese Academy of Sciences, Xi'an 710600, China
4. Key Laboratory of Time and Frequency Primary Standards, Chinese Academy of Sciences, Xi'an 710600, China

Received:2021-06-23 Online:2022-05-01 Published:2022-05-16
Contact: Yuanwei WU

摘要/Abstract

摘要：

针对国内甚长基线干涉测量(very long baseline interferometry, VLBI)观测频率不足, 导致世界时(universal time, UT1)缺乏连续性的现状, 提出将国内宽带VLBI系统(VLBI2010)解算的UT1序列及国际全球卫星导航定位系统(global navigation satellite system, GNSS)监测评估系统(international GNSS monitoring and assessment system, iGMAS)解算的日长变化ΔLOD序列进行融合, 进而得到更为连续且稳定的UT1序列。该方法的核心是将VLBI2010的UT1序列和iGMAS的ΔLOD序列通过Vondrak算法进行融合, 并结合马尔可夫链蒙特卡罗(Markov chain Monte Carlo, MCMC)模拟方法研究了不同测量精度和时间间隔的UT1序列对融合后的UT1精度依赖关系, 以及融合过程中UT1和ΔLOD最优权比的选择, 最后将融合后的数据与IERS 14 C04 UT1序列进行比对。实验结果表明, 2018年和2020年的VLBI2010系统的实测UT1序列与iGMAS的ΔLOD序列融合后, UT1的精度分别达到32 μs和51 μs, 融合后的UT1精度提升超过30%。

关键词: 世界时, 日长变化, 参考系, 数值方法

Abstract:

Due to the lack of observation frequency of very long baseline interferometry (VLBI) in China, universal time (UT1) lacks continuity, a combination approach is proposed by combining the UT1 sequence produced by the domestic broadband VLBI system (VLBI2010) and the variation of length of day ΔLOD sequence produced by the international global navigation satellite system (GNSS) monitoring and assessment system (iGMAS). The Vondrak algorithm is used to combine the UT1 sequence of VLBI2010 and the ΔLOD sequence of iGMAS. The Markov chain Monte Carlo (MCMC) simulation is used to investigate the relationship between the combined accuracy of UT1 sequences and the input measurement accuracy and time interval, and the optimization of the weight ratio between UT1 and ΔLOD. Finally, the combined UT1 sequence is compared with the IERS 14 C04 UT1 sequence. It is shown that the combination algorithm can effectively improve the accuracy of the output UT1 series: the accuracies of 2018 and 2020 UT1 series are 32 μs and 51 μs respectively. Compared with the original series, the accuracy of the combined result is improved by more than 30%.

Key words: universal time (UT1), voriation of lengthe of day (ΔLOD), reference system, numerical methods

中图分类号:

P228

李西顺, 吴元伟, 姚当, 刘佳, 马浪明, 杨旭海, 张首刚. 基于国内宽带VLBI2010系统及iGMAS的UT1/ΔLOD数据融合方法[J]. 系统工程与电子技术, 2022, 44(5): 1644-1651.

Xishun LI, Yuanwei WU, Dang YAO, Jia LIU, Langming MA, Xuhai YANG, Shougang ZHANG. UT1/ΔLOD data combination method with domestic broadband VLBI2010 system and iGMAS[J]. Systems Engineering and Electronics, 2022, 44(5): 1644-1651.

图/表 14

图1

表1

表2

图2

表3

图3

图4

图5

图6

表4

图7

表5

图8

图9

参考文献 40

1	高杰, 秦文振, 张金江, 等. 基础序列长度EOP预报精度影响分析[J]. 测绘与空间地理信息, 2020, 43 (9): 134- 135. doi: 10.3969/j.issn.1672-5867.2020.09.034
	GAO J , QIN W Z , ZHANG J J , et al. Analysis of influence of basic sequence length on the accuracy of EOP prediction[J]. Geomatics & Spatial Information Technology, 2020, 43 (9): 134- 135. doi: 10.3969/j.issn.1672-5867.2020.09.034
2	王广利, 徐明辉. 利用IVS加强观测确定UT1的分析研究[J]. 天文学报, 2012, 53 (3): 222- 229. doi: 10.3969/j.issn.0001-5245.2012.03.005
	WANG G L , XU M H . The analysis of UT1 determined by IVS intensive observations[J]. Acta Astronomica Sinica, 2012, 53 (3): 222- 229. doi: 10.3969/j.issn.0001-5245.2012.03.005
3	NASTULA J , CHIN T M , GROSS R , et al. Smoothing and predicting celestial pole offsets using a Kalman filter and smoother[J]. Journal of Geodesy, 2020, 94 (3): 2- 17. doi: 10.1007/s00190-020-01349-9
4	GAMBIS D , LUZUM B . Earth rotation monitoring, UT1 determination and prediction[J]. Metrologia, 2011, 48 (4): 165- 170. doi: 10.1088/0026-1394/48/4/S06
5	徐天河, 王潜心, 于素梅, 等. 利用区域网GPS/BDS数据确定地球自转参数[J]. 导航定位学报, 2015, 3 (3): 13- 17.
	XU T H , WANG Q X , YU S M , et al. Earth rotation parameters determination using local GPS/BDS network data[J]. Journal of Navigation and Positioning, 2015, 3 (3): 13- 17.
6	张永浩, 成英燕, 王虎, 等. BDS与GPS数据解算地球自转参数精度分析[J]. 测绘科学, 2018, 43 (12): 13- 14.
	ZHANG Y H , CHENG Y Y , WANG H , et al. Analysis of earth rotation parameters accuracy based on BDS and GPS data[J]. Science of Surveying and Mapping, 2018, 43 (12): 13- 14.
7	BIZOUARD C, GAMBIS D. The combined solution C04 for earth orientation parameters consistent with international terrestrial reference frame 2005[C]//Proc. of the International Association of Geodesy Symposium, 2009: 265-270.
8	GAMBIS D . Monitoring earth orientation using space-geodetic techniques: state of the art and prospective[J]. Journal of Geodesy, 2004, 78 (4): 295- 303.
9	RAY J , KAUBA J , ALTAMIMI Z . Is there utility in rigorous combinations of VLBI and GPS earth orientation parameters?[J]. Journal of Geodesy, 2005, 79 (9): 505- 511. doi: 10.1007/s00190-005-0007-7
10	FERLAND R , PIRASZEWSKI M . The IGS combined stations coordinates, earth rotation parameters and apparent geocenter[J]. Journal of Geodesy, 2009, 83 (5): 385- 392.
11	THALLER D , KRUGEL M , ROTHACHE M , et al. Combined earth orientations parameters based on homogeneous and continuous VLBI and GPS data[J]. Journal of Geodesy, 2007, 81 (8): 529- 541. doi: 10.1007/s00190-006-0115-z
12	ARTZ T , BERNHARD L , NOTHNAGEL A , et al. Methodology for the combination of sub-daliy earth rotation from GPS and VLBI observations[J]. Journal of Geodesy, 2012, 86 (3): 221- 239. doi: 10.1007/s00190-011-0512-9
13	郝亮, 章传银. 地球自转参数的空间大地测量方法探讨[J]. 科技与创新, 2017, (2): 7- 8.
	HAO L , ZHANG C Y . Discussion on space geodesy method of earth rotation parameters[J]. Science and Technology & Innovation, 2017, (2): 7- 8.
14	MALKIN Z . The impact of celestial pole offset modelling on VLBI UT1 intensive result[J]. Journal of Geodesy, 2011, 85 (9): 617- 622. doi: 10.1007/s00190-011-0468-9
15	LIU X X, WEI E H, WANG L X. Calculating high frequency earth rotation parameters using GPS observations and precision analysis[C]//Proc. of the 8th China Satellite Navigation Conference, 2017: 32-42.
16	张志斌, 王广利, 刘祥, 等. 中国VLBI网观测地球定向参数能力分析[J]. 武汉大学学报, 2013, 38 (8): 911- 915.
	ZHANG Z B , WANG G L , LIU X , et al. Analysis of EOP determination via Chinese VLBI network[J]. Geomatics and Information Science of Wuhan University, 2013, 38 (8): 911- 915.
17	张军杰. 联合VLBI和GNSS解算地球自转参数方法及软件实现[D]. 北京: 中国矿业大学, 2018.
	ZHANG J J. Estimation of earth rotation parameters based on the combination of VLBI and GNSS technologies and its software realization[D]. Beijing: China University of Mining and Technology, 2018.
18	王广利, 李金岭, 钱志瀚, 等. 利用天测与测地VLBI观测建立天球与地球参考架[J]. 测绘学报, 2000, 29 (2): 114- 117. doi: 10.3321/j.issn:1001-1595.2000.02.004
	WANG G L , LI J L , QIAN Z H , et al. The determinations of celestial and terrestrial reference frames from astrometric and geodetic VLBI observations[J]. Acta Geodaetica et Cartographica Sinica, 2000, 29 (2): 114- 117. doi: 10.3321/j.issn:1001-1595.2000.02.004
19	WEI E H , YAN W , JIN S G , et al. Improvement of earth orientation parameters estimate with Chang'E-1 delta VLBI observations[J]. Journal of Geodynamics, 2013, 72, 46- 52. doi: 10.1016/j.jog.2013.04.001
20	魏二虎, 刘文杰, WEIJianan, 等. VLBI和GPS观测联合解算地球自转参数和日长变化[J]. 武汉大学学报(信息科学版), 2016, 41 (1): 66- 71.
	WEI E H , LIU W J , WEI J N , et al. Calculation of earth rotation parameters and day length variation by joint observation[J]. Geomatics and Information Science of Wuhan University, 2016, 41 (1): 66- 71.
21	GAMBIS D, BIZOUARD C. Monitoring UT1 from astro-geodetic techniques at the EOP Center of the IERS[C]//Proc. of the 28th IAU General Assembly, 2009: 207-208.
22	GAMBIS D, BIZOUARD C. Monitoring UT1 using both VLBI and GPS estimates[C]//Proc. of the 19th European VLBI for Geodesy and Astrometry Working Meeting, 2009: 24-25.
23	FREEDMAN A P , STEPPE J A , DICKEY J O , et al. The short-term prediction of universal time and length of day using atmospheric angular-momentum[J]. Journal of Geophysical Research-Solid Earth, 1994, 99 (B4): 6981- 6996. doi: 10.1029/93JB02976
24	SENIOR K , KOUBA J , RAY J . Status and prospects for combined GPS LOD and VLBI UT1 measurements[J]. Artificial Satellites, 2010, 45 (2): 57- 72. doi: 10.2478/v10018-010-0006-7
25	NILSSON T , KARBON M , SOJA B , et al. Rapid UT1 estimation by combining VLBI intensives with GNSS[J]. International Association of Geodesy Symposia, 2016, 150 (143): 521- 526.
26	VONDRAK J , CEPEK A . Combined smoothing method and its use in combining Earth orientation parameters measured by space techniques[J]. Astronomy & Astrophysics, 2000, 12 (1): 347- 359. doi: 10.1051/aas:2000306
27	曾安敏, 张琦, 孙中苗. 一种附加边界约束和内约束的多中心ERP融合模型[J]. 武汉大学学报(信息科学版), 2019, 44 (12): 1771- 1776.
	ZENG A M , ZHANG Q , SUN Z M . A multicenter ERP fusion model with boundary and internal constraints[J]. Geomatics and Information Science of Wuhan University, 2019, 44 (12): 1771- 1776.
28	VONDRAK J . A contribution to the problem of smoothing observational data[J]. Bulletin of the Astronomical Institutes of Czechoslovakia, 1969, 20 (6): 349- 355.
29	VONDRAK J . Problem of smoothing observational data Ⅱ[J]. Bulletin of the Astronomical Institutes of Czechoslovakia, 1977, 28 (2): 84- 89.
30	曹梦成, 朱建军, 邹峥嵘, 等. Vondrak滤波在周跳探测与修复中的应用[J]. 工程勘察, 2006, (10): 54- 56.
	CAO M C , ZHU J J , ZOU Z R , et al. Application of Vondrak filter in cycle slip detection and repair[J]. Journal of Geotechnical Investigation & Surveying, 2006, (10): 54- 56.
31	VAJARGAH K F , BENIS S G , GOLSHAN H M . Detection of the quality of vital signals by the Monte Carlo Markov chain (MCMC) method and noise deleting[J]. Health Information Science and Systems, 2021, 9 (1): 2- 10. doi: 10.1007/s13755-020-00135-3
32	HU G Y , WANG H Y . Most likely optimal subsampled Mar-kov chain Monte Carlo[J]. Journal of Systems Science & Complexity, 2021, 34 (3): 1121- 1134. doi: 10.1007/s11424-020-9335-1
33	LIAO M Y . Efficient technique for assessing actual non-normal quality loss: Markov chain Monte Carlo[J]. Quality and Reliability Engineering International, 2017, 33 (5): 945- 957. doi: 10.1002/qre.2071
34	XU S F , XIE L , LIU J L . Robot localization based on MCMC particle filter[J]. Journal of Zhejiang University (Engineering Science), 2007, 41 (7): 1083- 1087. doi: 10.1007/s10483-007-0613-x
35	HUFFER F W , WU H L . Markov chain Monte Carlo for autologistic regression models with application to the distribution of plant species[J]. Biometrics, 1998, 54 (2): 509- 524. doi: 10.2307/3109759
36	HAARIO H , SAKSMAN E , TAMMINEN J . Componentwise adaptation for high dimensional MCMC[J]. Computational Statistics, 2005, 20 (2): 265- 273. doi: 10.1007/BF02789703
37	MALKIN Z . Impact of seasonal station motions on VLBI UT1 intensives results[J]. Journal of Geodesy, 2013, 87 (6): 505- 514. doi: 10.1007/s00190-013-0624-5
38	MACMILLAN D S . EOP and scale from continuous VLBI observing: CONT campaigns to future VGOS networks[J]. Journal of Geodesy, 2017, 91 (7): 819- 829. doi: 10.1007/s00190-017-1003-4
39	姚当, 弓剑军, 马浪明, 等. 基于VGOS系统的UT1初步观测与计算[J]. 时间频率学报, 2018, 41 (3): 234- 240.
	YAO D , GONG J J , MA L M , et al. The preliminary test observation of UT1 with the VGOS system[J]. Journal of Time and Frequency, 2018, 41 (3): 234- 240.
40	YAO D , WU W W , ZHANG B , et al. The NTSC VLBI system and its application in UT1 measurement[J]. Research in Astronomy and Astrophysics, 2020, 20 (6): 153- 162. doi: 10.1088/1674-4527/20/6/93

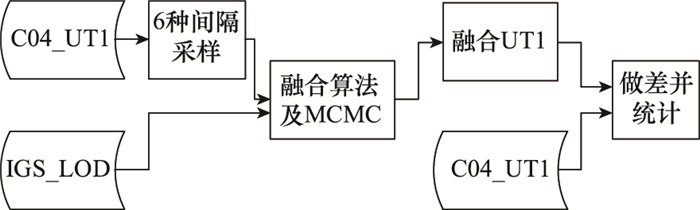

统计量	采样间隔/d
统计量	1	2	3	4	5	6
权重比	16.0	4.0	2.0	0.4	0.2	0.1
标准差/μs	4.5	9.2	16.7	17.6	19.7	33.1

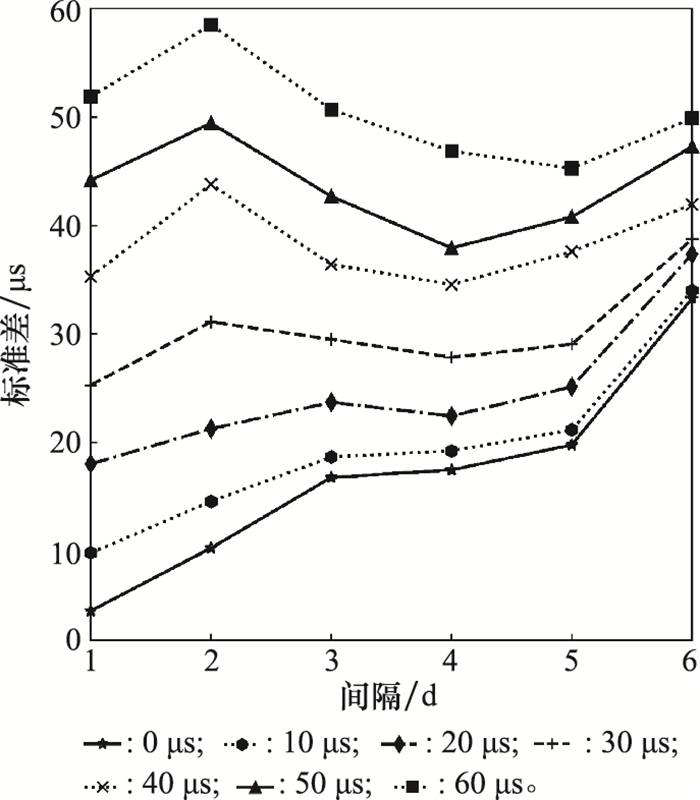

采样间隔/d	误差/μs
采样间隔/d	0	10	20	30	40	50	60
1	4.67	9.84	18.04	25.31	35.31	44.19	51.89
2	10.3	14.59	21.29	31.13	43.80	49.44	58.51
3	16.8	18.69	23.73	29.52	36.43	42.79	50.69
4	17.5	19.25	22.46	27.87	34.57	37.94	46.87
5	19.8	21.19	25.15	29.07	37.61	40.80	45.28
6	33.3	34.02	37.36	38.74	41.96	47.27	49.89

统计量	偏差/μs
统计量	0	10	20	30	40	50	60
标准差	4.6	4.6	4.6	4.6	4.6	4.6	4.6
均值	0.2	10.2	20.2	30.2	40.2	50.2	60.2

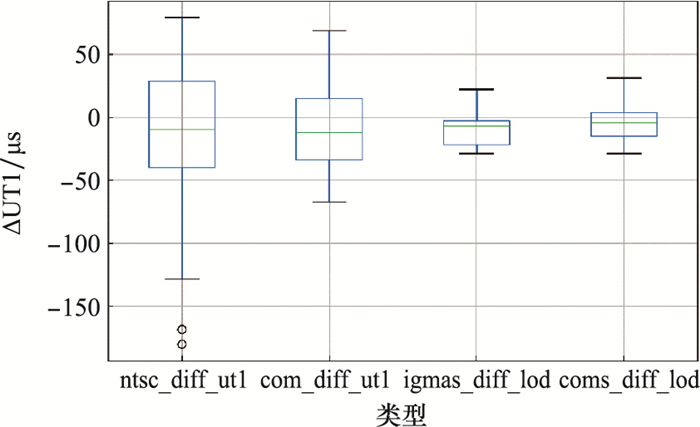

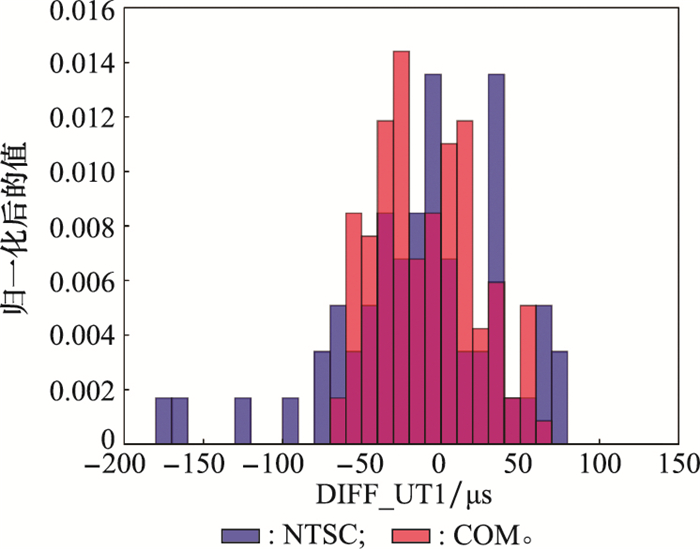

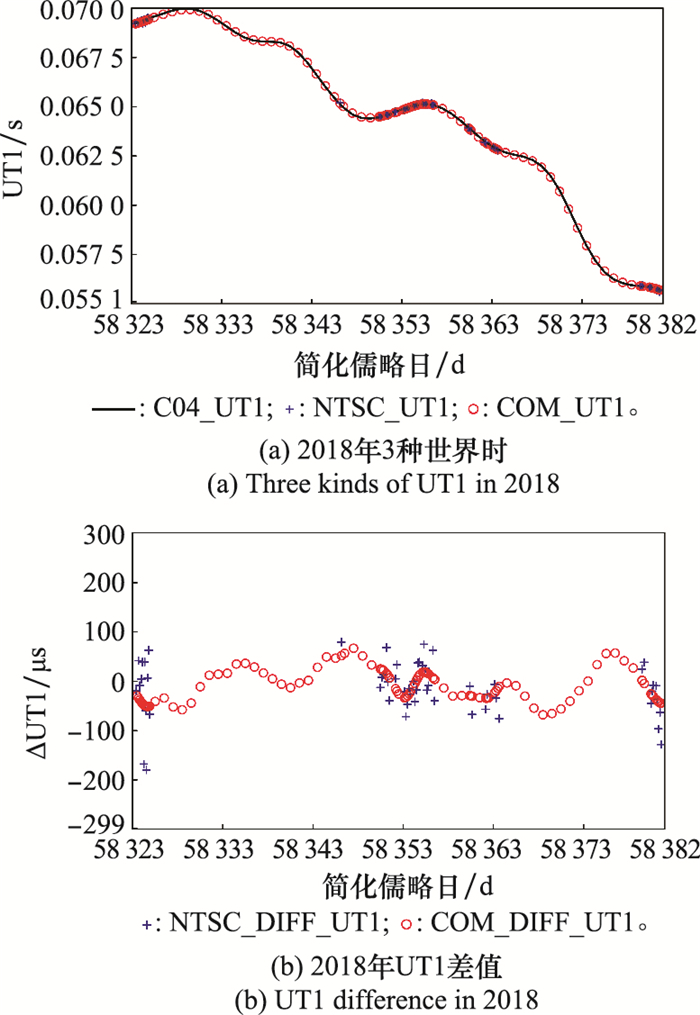

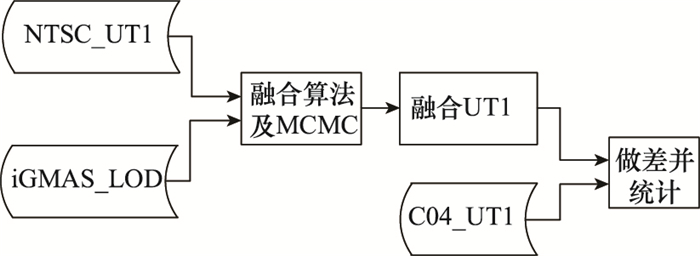

产品	统计特征量/μs
产品	标准差	均值	中位数	最大值	最小值
NTSC_UT1	53.18	-12.52	-9.32	79.41	-179.90
COM_UT1	31.96	-8.41	-11.70	68.91	-66.81

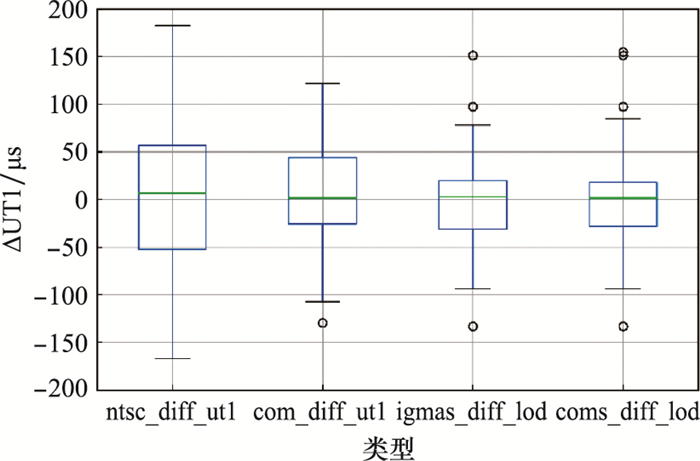

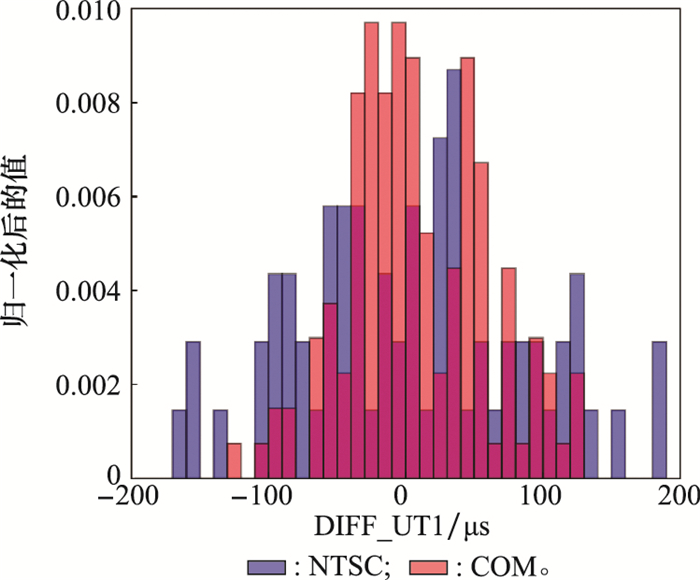

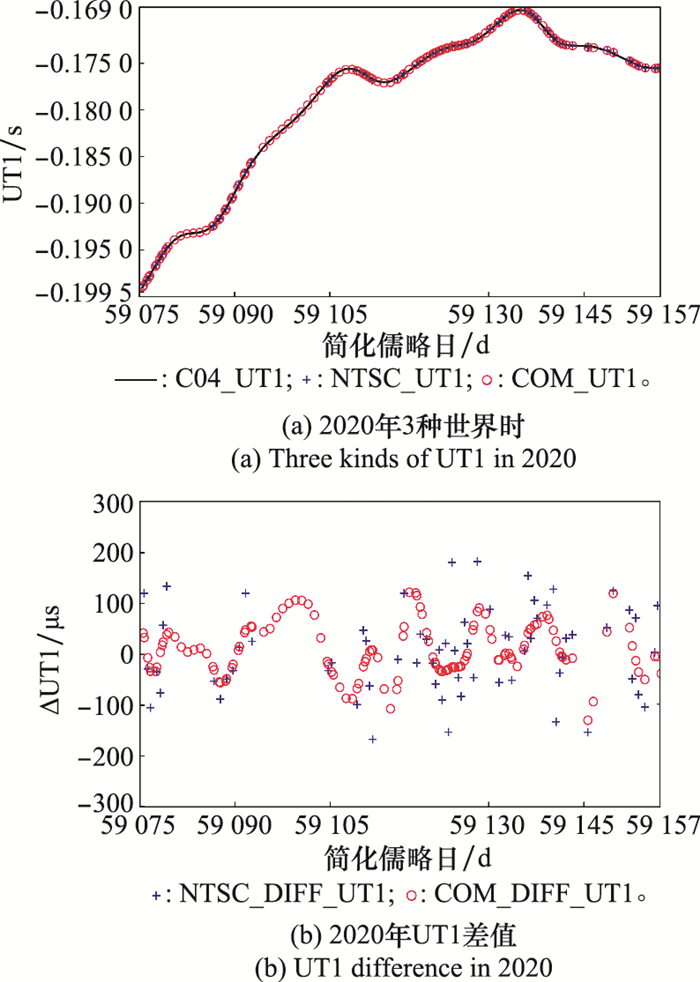

产品	统计特征量/μs
产品	标准差	均值	中位数	最大值	最小值
NTSC_UT1	82.51	3.64	6.54	182.68	-167.31
COM_UT1	51.04	7.91	1.48	122.05	-129.69
