高动态跳频载波跟踪技术

doi:10.12305/j.issn.1001-506X.2022.02.39

摘要/Abstract

摘要：

在无人机或导弹等高速运动目标间建立稳定、可靠的通信链路, 需要突破高动态下的载波跟踪技术, 考虑跳频通信系统的突发传输模式, 本文提出基于开环最大似然估计(maximum likelihood estimation, MLE)和扩展卡尔曼滤波跟踪算法的高动态载波信号跟踪技术。通过理论和仿真分析证实了该算法可有效克服传统环路的缺点, 能够在低载噪比下稳定工作且跟踪频率误差小, 可快速实现高动态环境下载波跟踪。尤其对于初速度为300 m/s, 初始加速度为15g, 加加速度为每秒60g的高动态场景, 本算法在低载噪比为35 dB-Hz时锁定不同跳频频率的锁定时间缩短到传统算法的1%~20%, 效果显著。

关键词: 载波跟踪, 最大似然估计, 高动态, 扩展卡尔曼滤波器

Abstract:

In order to establish a stable and reliable communication links between unmanned aerial vehicle or missiles, we need to breakthrough under high dynamic carrier capture and tracking technology. Considering the emergency of frequency hopping communication burst transfer mode, an open loop of maximum likelihood estimation (MLE) and extended Kalman filter is a favorable choice to realize the carrier tracking in high dynamic environment. Through theoretical analysis and simulation, it is proved that the algorithm is overcome the drawback of traditional loop. Simulation results show that the tracking technology can work steadily in the low carrier to noise ratio circumstance, and can quickly realize the carrier tracking at low error rate of carrier tracking frequency in high dynamic environment. For the high dynamic scene with initial speed of 300 m/s, initial acceleration of 15g and jerk of 60g per second, the capture and tracking time of this algorithm is reduced to 1%~20% of the traditional loop algorithm when the low carrier to noise ratio is 35 dB-Hz.

Key words: carrier tracking, maximum likelihood estimation (MLE), high dynamic, extended Kalman filter

中图分类号:

TN911

刘艺, 周晓雄, 程广俊. 高动态跳频载波跟踪技术[J]. 系统工程与电子技术, 2022, 44(2): 677-683.

Yi LIU, Xiaoxiong ZHOU, Guangjun CHENG. High dynamic carrier tracking technology in frequency hopping systems[J]. Systems Engineering and Electronics, 2022, 44(2): 677-683.

图/表 11

图1

图2

图3

图4

图5

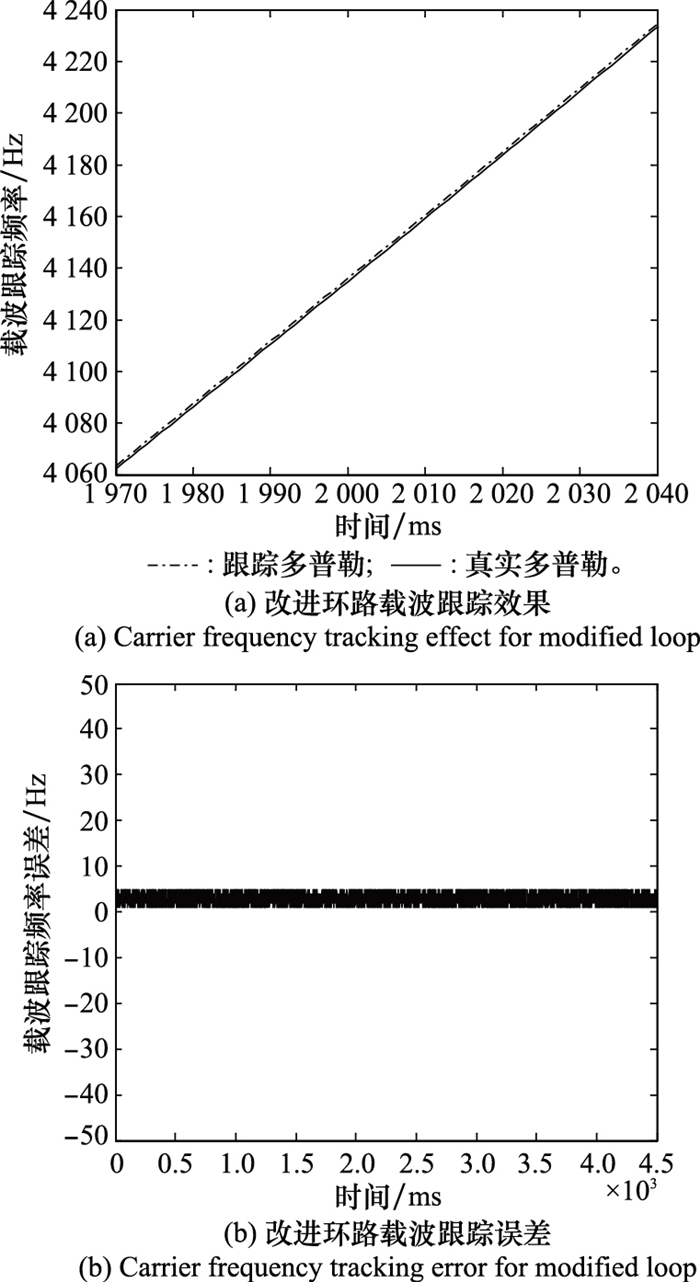

图6

表1

图7

图8

表2

图9

参考文献 32

1	常海锐, 王峰. 防空导弹武器系统无线通信抗干扰能力分析[J]. 现代防御技术, 2020, 48 (6): 60- 66.
	CHANG H R , WANG F . Analysis on antijamming ability of wireless communication of air defense missile weapon system[J]. Modern Defense Technology, 2020, 48 (6): 60- 66.
2	KOSTI Z . Performance and implementation of dynamic frequency hopping in limited-bandwidth[J]. IEEE Trans.on Wireless Communications, 2002, 1 (1): 28- 35. doi: 10.1109/7693.975442
3	MUHAMMAD T , PRESTI L L , FANTINO M . A novel quasi-open loop architecture for GNSS carrier recovery systems[J]. International Journal of Navigation and Observation, 2012, doi: 10.1155/2012/324858
4	GRAAS F V , SOLOVIEV A , DE HAAG M U . Closed-loop sequential signal processing and open-loop batch processing approaches for GNSS receiver design[J]. IEEE Journal of Selected Topics in Signal Processing, 2009, 3 (4): 571- 586. doi: 10.1109/JSTSP.2009.2023350
5	WARD P W. Performance comparison between FLL, PLL and a novel FLL-assisted PLL carrier tracking loop under RF interference conditions[C]//Proc. of the International Technical Meeting of the Satellite Division of the Institute of Navigation, 1998: 783-795.
6	LEGRAND F, MACABIAU C, ISSER J. Improvement of pseudorange measurements accuracy by using fast adaptive bandwidth lock loop[C]//Proc. of the International Technical Meeting of the Satellite Division of the Institute of Navigation, 2000: 2346-2356.
7	DEL PERAL-ROSADO J A, LOPEZ-SALCEDO J A, SECO-GRANADOS G. Kalman filter-based architecture for robust and high-sensitivity tracking in GNSS receivers[C]//Proc. of the European Workshop on Satellite Navigation Technologies, 2010: 1-8.
8	GREWAL M S , ANDREWS A P . Kalman filtering: theory and practice using MATLAB[M]. New York: Wiley, 2008.
9	陈竹, 王元钦, 杨文革. 基于跳频图案补偿的DS/FH混合扩频测控信号载波跟踪技术[J]. 电讯技术, 2010, 50 (7): 49- 54. doi: 10.3969/j.issn.1001-893x.2010.07.011
	CHEN Z , WANG Y Q , YANG W G . Carrier tracking aided by hopping patterns in hybrid DS/FH spread spectrum TT&C system[J]. Telecommunication Engineering, 2010, 50 (7): 49- 54. doi: 10.3969/j.issn.1001-893x.2010.07.011
10	GUVENSEN G M, TANIK Y, YILMAZ A O. On the carrier frequency offset estimation for frequency hopping burst mode mobile radio[C]//Proc. of the Military Communication Conference, 2010: 1244-1249.
11	HUAN H, ZHAO Y M, TAO R. Carrier tracking loop for high-dynamic spread spectrum signals aided by estimation of doppler rate[C]//Proc. of the International Conference on Signal Processing, 2012: 1378-1383.
12	PATAPOUTIAN A . On phase-locked loops and Kalman filters[J]. IEEE Trans.on Communications, 1999, 47 (5): 670- 672. doi: 10.1109/26.768758
13	BEST R E . Phase-locked loops: design, simulation, and applications[M]. New York: McGraw-Hill, 2008.
14	VILNROTTER V A , HINEDI S , KUMAR R . Frequency estimation techniques for high dynamic trajectories[J]. IEEE Trans.on Aerospace and Electronic Systems, 1989, 25 (4): 559- 577. doi: 10.1109/7.32088
15	RIFE C D , BOORSTYN R R . Single-tone parameter estimation from discrete-time observations[J]. IEEE Trans.on Information Theory, 1974, 20 (5): 591- 598. doi: 10.1109/TIT.1974.1055282
16	YAN Z, CHEN X, TANG X, et al. Performance and analysis for the carrier loop based on maximum likelihood in high dynamic scenarios[C]//Proc. of the 8th International Conference on Control, Mechatronics and Automation, 2020: 191-196.
17	易清明, 罗翀, 石敏. 基于快速最大似然估计的高动态GPS跟踪环[J]. 计算机工程, 2016, 42 (8): 300- 304. doi: 10.3969/j.issn.1000-3428.2016.08.053
	YI Q M , LUO C , SHI M . High dynamic GPS tracking loop based on fast maximum likelihood estimation[J]. Computer Engineering, 2016, 42 (8): 300- 304. doi: 10.3969/j.issn.1000-3428.2016.08.053
18	WON J H , PANY T , EISSFELLER B . Iterative maximum likelihood estimators for high-dynamic GNSS signal tracking[J]. IEEE Trans.on Aerospace and Electronic Systems, 2012, 48 (4): 2875- 2893. doi: 10.1109/TAES.2012.6324667
19	WANG J Z , SU S Y , CHEN Z P . Parameter estimation of chirp signal under low SNR[J]. Science China Information Sciences, 2015, 58 (2): 020307.
20	向洋, 胡修林. 基于最大似然估计的高动态GPS载波跟踪环[J]. 电子学报, 2010, 38 (7): 1563- 1567.
	XIANG Y , HU X L . Maximum likelihood estimation based high dynamic GPS carrier tracking loop[J]. Acta Electronica Sinica, 2010, 38 (7): 1563- 1567.
21	张显国, 符燕. 伪随机编码调相8 mm连续波雷达[J]. 系统工程与电子技术, 2009, 31 (5): 1105- 1107. doi: 10.3321/j.issn:1001-506X.2009.05.024
	ZHANG X G , FU Y . 8 mm CW radar with pseudo-noise code modulation[J]. Systems Engineering and Electronics, 2009, 31 (5): 1105- 1107. doi: 10.3321/j.issn:1001-506X.2009.05.024
22	潘曦, 聂玉平. 基于载波辅助的GPS相对动态跟踪算法研究[J]. 北京理工大学学报, 2011, 31 (5): 594- 597.
	PAN X , NIE Y P . Carrier-aided GPS relative dynamic tracking algorithm[J]. Transaction of Beijing Institute of Technology, 2011, 31 (5): 594- 597.
23	崔诵祺, 安建平, 王爱华. 机动目标模型匹配卡尔曼滤波载波跟踪算法[J]. 系统工程与电子技术, 2014, 36 (2): 376- 381.
	CUI S Q , AN J P , WANG A H . Kalman filter used for carrier tracking algorithm based on matched maneuvering target model[J]. Systems Engineering and Electronics, 2014, 36 (2): 376- 381.
24	SIMON D . Optimal state estimation Kalman, H_∞ and nonlinear approaches[M]. Hoboken, NJ: Wiley, 2006.
25	LI W B, LIU S J, ZHOU C H, et al. High dynamic carrier tracking using Kalman filter aided phase-lock loop[C]//Proc. of the IEEE International Conference on Wireless Communications, Networking and Mobile Computing, 2007: 673-676.
26	KIM K H , JEE G I , SONG J H . Carrier tracking loop using the adaptive two-stage Kalman filter for high dynamic situations[J]. International Journal of Control Automation and System, 2008, 6 (6): 948- 953.
27	MIAO J F , CHEN W , SUN Y R , et al. Low C/N₀ carrier tracking loop based on optimal estimation algorithm in GPS software receivers[J]. Chinese Journal of Aeronautics, 2010, 23 (1): 109- 116. doi: 10.1016/S1000-9361(09)60194-1
28	CHENG Y , CHANG Q , WANG H , et al. A two-stage Kalman filter-based carrier tracking loop for weak GNSS signals[J]. Sensors, 2019, 19 (6): 1369- 1375.
29	张小军, 郭承军, 曹建蜀. 基于卡尔曼滤波的GPS高动态载波跟踪环路设计[J]. 测绘科学, 2015, 40 (3): 321- 325. doi: 10.3969/j.issn.1673-6338.2015.03.021
	ZHANG X J , GUO C J , CAO J S . High-dynamic carrier tracking loop of GPS receiver based on Kalman filter[J]. Science of Surveying and Mapping, 2015, 40 (3): 321- 325. doi: 10.3969/j.issn.1673-6338.2015.03.021
30	SHARMA S , KRISHNAMURTHY P K . Reduced sampling rate Kalman filters for carrier phase and frequency offset tracking in 200 Gbps 16 QAM coherent communication system[J]. Scientific Reports, 2021, 11 (1): 1991. doi: 10.1038/s41598-020-80822-z
31	RANI S , SRIDEVI B . Estimation of carrier frequency offset for FBMC/OQAM by using modified Kalman filtering[J]. International Journal of Communication Systems, 2020, 33 (11): 4579- 4580.
32	HAJIABDOLRAHIM N, AGHDAM S R, ERIKSSON T. An extended Kalman filter framework for joint phase noise, CFO and sampling time error estimation[C]//Proc. of the IEEE 31st Annual International Symposium on Personal, Indoor and Mobile Radio Communications, 2020: 1-6.

方法	时间/ms
方法	400	800	1 200	1 600	2 000	2 400	2 800	3 200	3 600	4 000
传统	1.52	5.21	2.35	0.83	6.08	2.98	4.61	6.35	4.09	3.26
改进	0.64	4.51	1.75	0.75	4.88	1.07	3.39	4.95	2.96	2.05

方法	时间/ms
方法	400	800	1 200	1 600	2 000
传统	123	202	197	1 674	1 827
改进	24	64	13	33	9

方法	时间/ms
方法	2 400	2 800	3 200	3 600	4 000
传统	2 634	3 516	2 543	3 856	4 253
改进	18	35	27	42	11
