双线系统双探头大电流注入等效强场电磁辐射试验方法

doi:10.12305/j.issn.1001-506X.2021.11.04

摘要/Abstract

摘要：

针对平行双线耦合通道线缆两端设备同时进行试验考核的技术需求, 开展了双线系统双探头大电流注入等效替代辐照试验方法的研究。以非线性响应系统为受试设备, 建立了辐照和注入这两种条件下受试设备响应的分析计算模型, 推导出了注入激励源电压与辐照场强之间的等效对应关系, 提出了双探头大电流注入等效强场电磁辐射试验的条件和方法, 并进行了试验验证。试验验证结果表明, 双探头大电流注入等效强场电磁辐射试验的方法可以排除双线系统两终端阻抗参数的影响, 同时使两端的响应在辐照和注入的条件下一致, 可以实现精确等效。

关键词: 双探头, 大电流注入, 双线系统, 电磁辐射, 非线性系统, 等效替代

Abstract:

Aiming at the technical requirements for simultaneous test and assessment of equipment at both ends, the research on the two-wire system double-probe bulk current injection equivalent replacement radiation test method is carried out. Taking the nonlinear response system as the tested device, the analysis and calculation model of the response of the tested device under the two conditions of radiation method and injection method is established. The equivalent corresponding relationship is deduced between the injection excitation source voltage and the radiation field intensity, and the conditions and methods for the double-probe bulk current injection equivalent high field electromagnetic radiation test are proposed, and the test verification is carried out. The test verification results show that the method of double-probe bulk current injection equivalent high field electromagnetic radiation test can eliminate the influence of the impedance parameters of the two terminals of the two-wire system. And the method can make the response of the two ends consistent under the conditions of radiation and injection at the same time, which can achieve accuracy.

Key words: two probes, bulk current injection, two-wire system, electromagnetic radiation, nonlinear system, equivalent substitution

中图分类号:

O441
TM937

孙江宁, 潘晓东, 卢新福, 万浩江. 双线系统双探头大电流注入等效强场电磁辐射试验方法[J]. 系统工程与电子技术, 2021, 43(11): 3064-3071.

Jiangning SUN, Xiaodong PAN, Xinfu LU, Haojiang WAN. Test method of bulk current injection into the equivalent high field electromagnetic radiation of two-wire system with two probes[J]. Systems Engineering and Electronics, 2021, 43(11): 3064-3071.

图/表 10

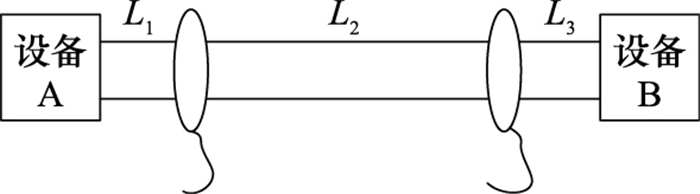

图1

图2

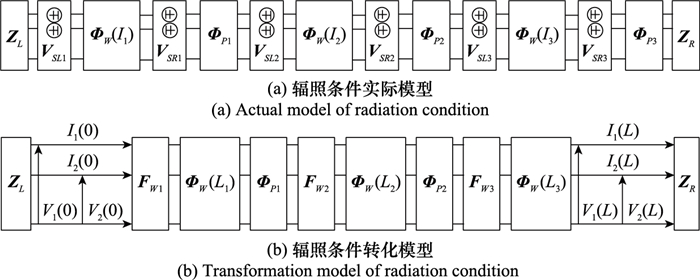

图3

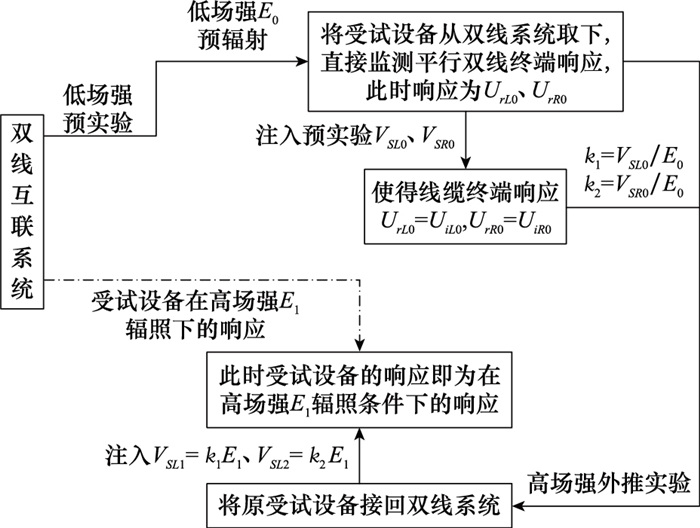

图4

图5

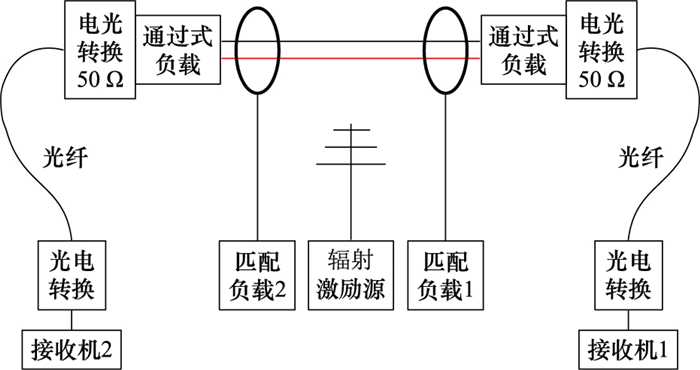

图6

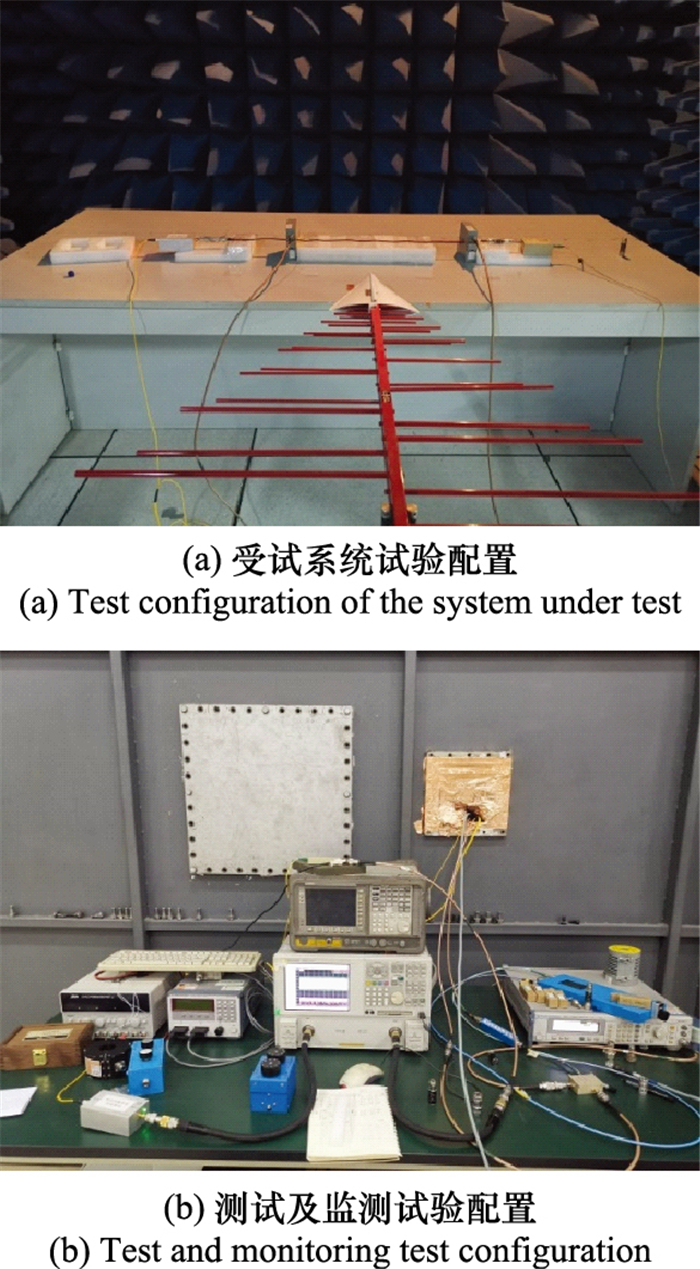

图7

表1

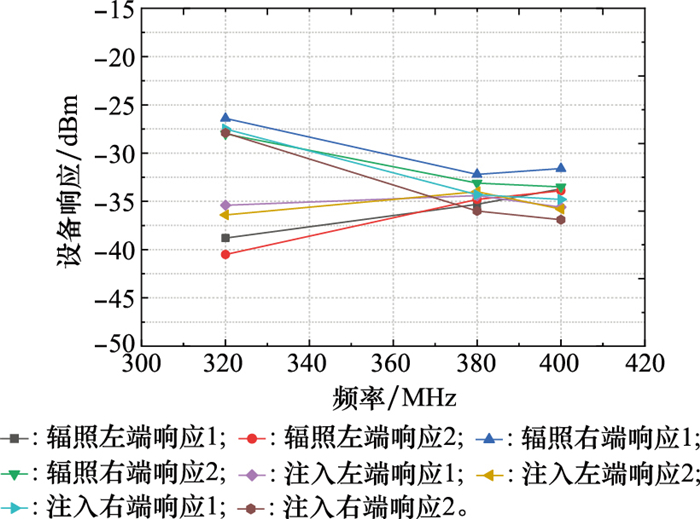

图8

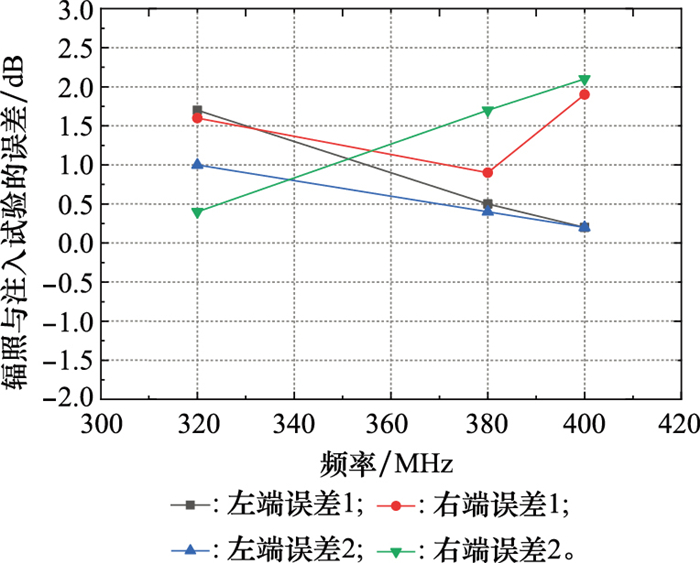

图9

参考文献 36

1	MIL-STD-464C. Electromagnetic environmental effects requirements for systems[S]. USA: Department of the Air Force, 2010.
2	GJB 1389A—2005. 系统电磁兼容性要求[S]. 中国: 中国人民解放军总装备部, 2005.
	GJB 1389A—2005. Electromagnetic compatibility requirements for systems[S]. China: Chinese People Liberation Army General Armament Department, 2005.
3	杨茂松, 孙永卫, 潘晓东, 等. 双绞线BCI等效替代强场电磁辐射实验研究[J]. 微波学报, 2018, 34 (6): 72- 77.
	YANG M S , SUN Y W , PAN X D , et al. Testing technology of using twisted pair cable BCI as substitution for high field continuous wave EM radiation[J]. Journal of Microwaves, 2018, 34 (6): 72- 77.
4	潘晓东, 魏光辉, 卢新福, 等. 差模定向注入等效替代强电磁脉冲辐射效应实验方法[J]. 电波科学学报, 2017, 32 (2): 151- 160.
	PAN X D , WEI G H , LU X F , et al. Test method of using differential mode injection as a substitute for high intensity electromagnetic pulse radiation[J]. Chinese Journal of Radio Science, 2017, 32 (2): 151- 160.
5	卢新福, 魏光辉, 潘晓东, 等. 端口非线性条件下双端差模注入法可行性研究[J]. 高电压技术, 2015, (12): 4213- 4219.
	LU X F , WEI G H , PAN X D , et al. Study on feasibility of double differential mode current injection method under condition of terminal nonlinearity[J]. High Voltage Engineering, 2015, (12): 4213- 4219.
6	潘晓东, 魏光辉, 卢新福, 等. 电磁注入等效替代辐照理论模型及实现技术[J]. 高电压技术, 2012, (9): 2293- 2301.
	PAN X D , WEI G H , LU X F , et al. Theoretical model and implementation technique of using injection as a substitute for radiation[J]. High Voltage Engineering, 2012, (9): 2293- 2301.
7	HE K , YU D J , GUO B S , et al. An equivalent dynamic test system for immunity characterization of the UAV positioning module using bulk current injection method[J]. IEEE Letters on Electromagnetic Compatibility Practice and Applications, 2020, 2 (4): 161- 164.
8	HO C Y , CHEN K S , HORNG T S . Estimating radiated emission reduction from printed circuit board using vector network analyzer with a bulk current injection probe[J]. Progress in Electromagnetics Research, 2013, 135 (1): 1- 16.
9	PAUL C R . Decoupling the multiconductor transmission line equations[J]. IEEE Trans.on Microwave Theory & Techniques, 2002, 44 (8): 1429- 1440.
10	CROVETTI P S , FIORI F . A critical assessment of the closed-loop bulk current injection immunity test performed in compliance with ISO 11452-4[J]. IEEE Trans.on Instrumentation and Measurement, 2011, 60 (4): 1291- 1297. doi: 10.1109/TIM.2010.2084870
11	KWAK S K , NAH W , KIM S Y . Electromagnetic susceptibility analysis of I/O buffers using the bulk current injection method[J]. Journal of Semiconductor Technology & Science, 2013, 13 (2): 114- 126.
12	MASHRIKI I M , RAZAVI S M J , ARMAKI S H M . Analyzing the resonance resultant from the capacitive effects in bulk current injection probe[J]. Radio Engineering, 2020, 29 (1): 109- 116.
13	SPADACINI G, GRASSI F, PIGNARI S A, et al. Experimental proof of concept for the correlation of bulk current injection and radiated susceptibility tests for aerospace equipment up to 1 GHz[C]//Proc. of the International Symposium on Electromagnetic Compatibility, 2018.
14	NANDYALA C, LITZ H, HAFNET B, et al. Efficient use of circuit & 3D-EM simulation to optimize the automotive bulk current injection (BCI) performance of ultrasonic sensors[C]// Proc. of the International Symposium on Electromagnetic Compatibility-EMC, 2020.
15	LI S F , ZHU T , CHEN C L , et al. W layer thickness dependence of the spin-orbit effective fields in NiFe/W bilayers[J]. Journal of Applied Physics, 2021, 129 (6): 063903. doi: 10.1063/5.0038236
16	POSPISIL J , GUERRERO A , ZMESKAL O , et al. Reversible formation of gold halides in single-crystal hybrid-perovskite/Au interface upon biasing and effect on electronic carrier injection[J]. Advanced Functional Materials, 2019, 29 (32): 1900881. doi: 10.1002/adfm.201900881
17	MASHRIKI I M , RAZAVI S M J , ARMAKI S H M . Electromagnetic and circuit modelling of a modified design of bulk current injection probe calibration jig[J]. IET Science Measurement Technology, 2020, 14 (9): 715- 721. doi: 10.1049/iet-smt.2019.0447
18	TSUKADA A, OKAMOTO K, OKUGAWA Y, et al. System-level response of ethernet linkage to bulk current injection into cables[C]//Proc. of the International Symposium on Electromagnetic Compatibility, 2020.
19	ZHANG Y X, YAN Z W, WANG J W, et al. The research of bulk current injection probe used for ICs electromagnetic immunity measurement[C]//Proc. of the 12th International Workshop on the Electromagnetic Compatibility of Integrated Circuits, 2019.
20	AIELLO O . Hall-effect current sensors susceptibility to EMI: experimental study[J]. Electronics, 2019, 8 (11): 1310. doi: 10.3390/electronics8111310
21	LIU X , GRASSI F , SPADACINI G , et al. Behavioural modelling of complex magnetic permeability with high-order debye model and equivalent circuits[J]. IEEE Trans.on Electromagnetic Compatibi-lity, 2020, doi: 10.1109/TEMC.2020.3016376
22	WANG P , LIN K M , ZHANG X , et al. An online estimation method for both stator inductance and rotor flux linkage of SPMSM without dead-time influence[J]. IEEE Journal of Emerging and Selected Topics in Power Electronics, 2021, doi: 10.1109/JESTPE.2021.3057718
23	ZHU L, JING S. MATLAB-based multi-parameter optimization of bulk current injection probe[C]//Proc. of the IEEE International Conference on Computation, Communication and Engineering, 2019.
24	SUN C , YANG H , JALIL M B A . Ferrimagnetic resonance induced by the spin Hall effect[J]. Physical Review B, 2020, 102 (13): 134420. doi: 10.1103/PhysRevB.102.134420
25	NAYAK B P , RAMESH S , RAJEEV S , et al. Model-based system-level EMI/EMC simulation for BCI pass-fail prediction[J]. IEEE Letters on Electromagnetic Compatibility Practice and Applications, 2020, 2 (2): 28- 33.
26	DUARATE J P , CHOI S J , MOON D I , et al. Simple analytical bulk current model for long-channel double-gate junction less transistors[J]. IEEE Electron Device Letters, 2011, 32 (6): 704- 706. doi: 10.1109/LED.2011.2127441
27	GRASSI F , SPADACINI G , MARLIANI F , et al. Use of double bulk current injection for susceptibility testing of avionics[J]. IEEE Trans.on Electromagnetic Compatibility, 2008, 50 (3): 524- 535. doi: 10.1109/TEMC.2008.926810
28	MARLIANI F, SPADACINI G, PIGNARI S A. Double bulk current injection test with amplitude and phase control[C]//Proc. of the 18th International Zurich Symposium on Electromagnetic Compatibility, 2007.
29	CUVELIER M, RIOULT J, KLINGLER M, et al. Double bulk current injection: a new harness setup to correlate immunity test methods[C]//Proc. of the IEEE International Symposium on Electromagnetic Compatibility, 2003.
30	GRASSI F , SPADACINI G , PIGNARI S A . The concept of weak imbalance and its role in the emissions and immunity of differential lines[J]. IEEE Trans.on Electromagnetic Compatibility, 2013, 55 (6): 1346- 1349. doi: 10.1109/TEMC.2013.2261302
31	GRASSI F , PIGNARI S A . Bulk current injection in twisted wire pairs with not perfectly balanced terminations[J]. IEEE Trans.on Electromagnetic Compatibility, 2013, 55 (6): 1293- 1301. doi: 10.1109/TEMC.2013.2255295
32	GRASSI F. Accurate modelling of ferrite-core effects in probes for bulk current injection[C]//Proc. of the IEEE International Conference on Microwaves, Communications, Antennas and Electronics Systems, 2010.
33	PIGNARI S A , CANAVERO F G . Theoretical assessment of bulk current injection versus radiation[J]. IEEE Trans.on Electromagnetic Compatibility, 1996, 38 (3): 469- 477. doi: 10.1109/15.536077
34	GRASSI F , MARLIANI F , PIGNARI S . A circuit modelling of injection probes for bulk current injection[J]. IEEE Trans.on Electromagnetic Compatibility, 2007, 49 (3): 563- 576. doi: 10.1109/TEMC.2007.902385
35	GRASSI F , PIGNARI S A . Immunity to conducted noise of data transmission along DC power lines involving twisted-wire pairs above ground[J]. IEEE Trans.on Electromagnetic Compatibility, 2013, 55 (1): 195- 207. doi: 10.1109/TEMC.2012.2208117
36	FREDERICK M , TESCHET M V I , TORBJORN K . EMC analysis methods and computational models[M]. Beijing: Beijing University of Posts and Telecommunications Press, 2009.

频率/MHz	试验类别	阻抗条件/Ω	辐照试验				注入试验				左端注入与辐照试验误差/dB	右端注入与辐照试验误差/dB
频率/MHz	试验类别	阻抗条件/Ω	辐射功率dBm	左侧终端响应dBm	右侧终端响应dBm	两侧终端响应的相位差/(°)	注入功率dBm	左侧终端响应dBm	右侧终端响应dBm	两侧终端响应的相位差/(°)	左端注入与辐照试验误差/dB	右端注入与辐照试验误差/dB
320	低场强预先试验	左25 右37.5	0	-52.4	-41.2	-50	-0.2	-52.4	-41.2	-50	-	-
	高场强外推试验1	左25 右50	10	-38.8	-26.4	-78	9.8	-40.5	-28.0	-78	1.7	1.6
	高场强外推试验2	左50 右50	10	-35.4	-27.5	-46	9.8	-36.4	-27.9	-45	1.0	0.4
380	低场强预先试验	左50 右50	0	-44.2	-39.0	-86	-8.1	-44.2	-39.0	-86	-	-
	高场强外推试验1	左50 右37.5	10	-35.3	-32.2	-49	1.9	-34.8	-33.1	-47.0	0.5	0.9
	高场强外推试验2	左50 右25	10	-34.4	-34.3	-50	1.9	-34.0	-36.0	-56.0	0.4	1.7
400	低场强预先试验	左50 右25	0	-45.0	-44.0	135	-9.9	-45.0	-44.0	135	-	-
	高场强外推试验1	左50 右37.5	10	-33.7	-31.6	133	0.1	-33.9	-33.5	135	0.2	1.9
	高场强外推试验2	左50 右16.7	10	-35.6	-34.8	123	0.1	-35.8	-36.9	127	0.2	2.1
