基于贝叶斯融合与仿真的系统剩余寿命预测

doi:10.12305/j.issn.1001-506X.2021.06.31

摘要/Abstract

摘要：

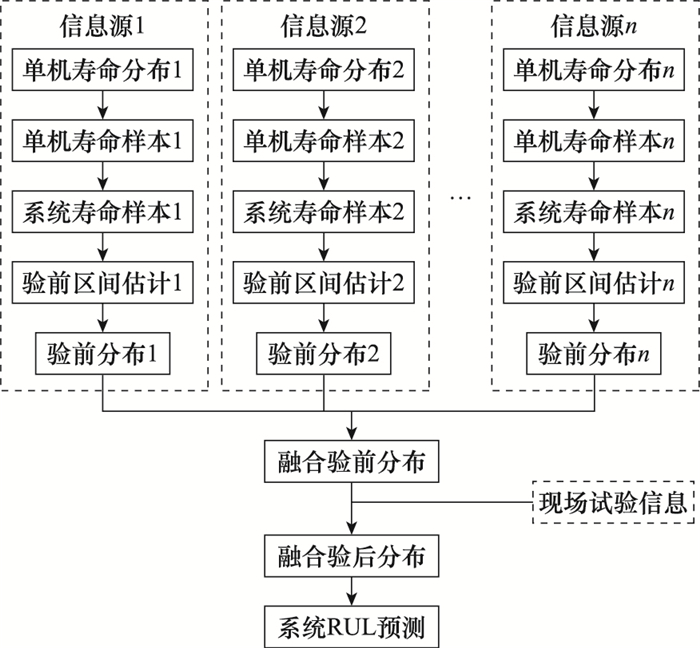

针对复杂设备的系统级剩余寿命预测问题, 提出一种将贝叶斯理论与仿真相结合的融合预测方法。首先, 采用仿真方法将单机级的多源失效信息折合到系统级, 并转化为验前分布。然后, 结合系统级的现场试验数据, 获得多源信息的验后分布, 并通过加权融合确定联合验后分布, 从而预测系统的剩余寿命。最后, 以某系统作为实例进行方法验证。结果表明，所提方法为系统剩余寿命预测提供了一条可行思路, 并能够在工程实践中运用。

关键词: 寿命预测, 贝叶斯理论, 随机仿真, 多源信息

Abstract:

Aiming at the system level remaining useful life (RUL) prediction of complex equipment, a fusion prediction method combining Bayesian theory with simulation is proposed. Firstly, the simulation method is used to convert the multi-source failure information from the single machine level to the system level, and then to the prior distribution. Then, the post test distribution of multi-source information is obtained by combining the field test data at the system level, and the joint post test distribution is determined by weighted fusion, so as to predict the RUL of the system. Finally, a system is taken as an example to verify the method. The results show that the proposed method provides a feasible idea for the system RUL prediction, and can be applied in engineering practice.

Key words: life prediction, Bayesian theory, stochastic simulation, multi-source information

中图分类号:

TP20

宋兆理, 贾祥, 郭波, 程志君. 基于贝叶斯融合与仿真的系统剩余寿命预测[J]. 系统工程与电子技术, 2021, 43(6): 1706-1713.

Zhaoli SONG, Xiang JIA, Bo GUO, Zhijun CHENG. Remaining useful life prediction of system based on Bayesian fusion and simulation[J]. Systems Engineering and Electronics, 2021, 43(6): 1706-1713.

图/表 9

图1

图2

表1

表2

图3

图4

图5

图6

表3

参考文献 30

1	BEN A J , CHEBEL-MORELLO B , SAIDI L , et al. Accurate bearing remaining useful life prediction based on Weibull distribution and artificial neural network[J]. Mechanical Systems and Signal Processing, 2015, 56/57 (5): 150- 172.
2	BAGDONAVICIUS V , NIKULIN M . Estimation in degradation models with explanatory variables[J]. Lifetime Data Analysis, 2001, 7 (1): 85- 103. doi: 10.1023/A:1009629311100
3	WANG J B , WANG X H , WANG L Z . Modeling of BN lifetime prediction of a system based on integrated multi-level information[J]. Sensors, 2017, 17 (9): 2123. doi: 10.3390/s17092123
4	SONG Z L , ZHAO Q , JIANG P , et al. A numerical method for system residual life prediction based on Simpson formula[J]. Communications in Statistics-Simulation and Computation, 2019, doi: 10.1080/03610918.2019.1642479
5	赵骞, 贾祥, 程志君, 等. 部件寿命服从威布尔分布时典型系统的寿命与剩余寿命估计[J]. 系统工程与电子技术, 2019, 41 (7): 1665- 1671.
	ZHAO Q , JIA X , CHENG Z J , et al. Estimation of lifetime and residual life of typical system with Weibull distributed components[J]. Systems Engineering and Electronics, 2019, 41 (7): 1665- 1671.
6	WALTER G , ASLETT L J M , COOLEN F P A . Bayesian nonparametric system reliability using sets of priors[J]. International Journal of Approximate Reasoning, 2017, 80, 67- 88. doi: 10.1016/j.ijar.2016.08.005
7	VALIKHANI M , YOUNESIAN D . Bayesian framework for simultaneous input/state estimation in structural and mechanical systems[J]. Structural Control and Health Monitoring, 2019, 26 (9): e2379.
8	LIU J , WANG W , MA F , et al. A data-model-fusion prognostic framework for dynamic system state forecasting[J]. Engineering Applications of Artificial Intelligence, 2012, 25 (4): 814- 823. doi: 10.1016/j.engappai.2012.02.015
9	BAMRUNGSETTHAPONG W , PONGPULLPONSAK A . System reliability for non-repairable multi-state series-parallel system using fuzzy Bayesian inference based on prior interval probabilities[J]. International Journal of General Systems, 2015, 44 (4): 442- 456. doi: 10.1080/03081079.2014.976215
10	MIRMOSTAFAEE S M T K , AMINI M , ASGHARZADEH A . Bayesian prediction of minimal repair times of a series system based on hybrid censored sample of components' lifetimes under Rayleigh distribution[J]. Communications in Statistics-Theory and Methods, 2016, 46 (4): 1788- 1806.
11	LIU B , SHI Y M , ZHANG F , et al. Reliability nonparametric Bayesian estimation for the masked data of parallel systems in step-stress accelerated life tests[J]. Journal of Computational and Applied Mathematics, 2017, 311, 375- 386. doi: 10.1016/j.cam.2016.07.029
12	YANG L C , GUO Y L , WANG Q . Reliability assessment of a hierarchical system subjected to inconsistent priors and multilevel data[J]. IEEE Trans.on Reliability, 2020, 69 (1): 277- 292. doi: 10.1109/TR.2019.2895501
13	ARSLAN S S . A reliability model for dependent and distributed MDS disk array units[J]. IEEE Trans.on Reliability, 2019, 68 (1): 133- 148. doi: 10.1109/TR.2018.2878503
14	WANG H W , XU T X , MI Q L . Lifetime prediction based on Gamma processes from accelerated degradation data[J]. Chinese Journal of Aeronautics, 2015, 28 (1): 172- 179. doi: 10.1016/j.cja.2014.12.015
15	GUERIN F , BARREAU M , CLOUPET S , et al. Bayesian estimation of degradation model defined by a Wiener process-application on disc brake wear[J]. IFAC Proceedings Volumes, 2010, 43 (3): 74- 79. doi: 10.3182/20100701-2-PT-4012.00014
16	QI H M, JIANG B, LU N Y, et al. The residual life prediction of the satellite attitude control system based on Petri net[C]//Proc. of the IEEE Prognostics and System Health Management Conference, 2014.
17	施权, 胡昌华, 司小胜, 等. 考虑执行器性能退化的控制系统剩余寿命预测方法[J]. 自动化学报, 2019, 45 (5): 941- 952.
	SHI Q , HU C H , SI X S , et al. Remaining useful lifetime prediction method of controlled systems considering performance degradation of actuator[J]. Acta Automatica Sinica, 2019, 45 (5): 941- 952.
18	CASTET J F , SALEH J H . Satellite reliability: statistical data analysis and modeling[J]. Journal of Spacecraft & Rockets, 2009, 46 (5): 1065- 1076.
19	CASTET J F , SALEH J H . Beyond reliability, multi-state failure analysis of satellite subsystems: a statistical approach[J]. Reliability Engineering and System Safety, 2010, 95, 311- 322. doi: 10.1016/j.ress.2009.11.001
20	CHO M. Monte Carlo simulation of reliability growth of small-scale satellites through testing[C]//Proc. of the International Astronautical Congress, 2014: 6762-6771.
21	SALIMI H , KIAD S , POURGOL-MOHAMAD M . Stochastic fatigue crack growth analysis for space system reliability[J]. ASCE-ASME Journal of Risk and Uncertainty in Engineering Systems, Part B: Mechanical Engineering, 2017, 4 (2) doi: 10.1115/1.4037219
22	PATOWARY A N , HAZARIKA J , SRIWASTAV G L . Reliability estimation of multi-component cascade system through Monte-Carlo simulation[J]. International Journal of System Assurance Engineering and Management, 2018, 9 (6): 1279- 1286.
23	KHORASGANI H , BISWAS G , SANKARARAMAN S . Methodologies for system-level remaining useful life prediction[J]. Reliability Engineering and System Safety, 2016, 154, 8- 18. doi: 10.1016/j.ress.2016.05.006
24	LI K , WU J J , ZHANG Q J , et al. New particle filter based on GA for equipment remaining useful life prediction[J]. Sensors, 2017, 17 (4) doi: 10.3390/s17040696
25	AMARI S V, DILL G. A new method for reliability analysis of standby systems[C]//Proc. of the Reliability and Maintainability Symposium, 2009.
26	凌光, 戴怡, 李曦. 基于二阶矩约束的最大熵先验信息解及其在数控系统可靠性评估中的应用[J]. 中国机械工程, 2010, 21 (12): 1466- 1468.
	LING G , DAI Y , LI X . Maximum entropy prior information solution based on second moment and its application in NC system reliability assessment[J]. China Mechanical Engineering, 2010, 21 (12): 1466- 1468.
27	ZHAO Q, JIA X, GUO B. Bayesian estimation of residual life for Weibull distributed products based on the fusion of different forms of expert information[C]//Proc. of the IEEE 19th International Conference on Software Quality, Reliability and Security Companion, 2019.
28	吴琳丽, 潘光, 黄桥高. 基于ML-Ⅱ的小子样复杂系统多源信息融合方法[J]. 计算机工程与应用, 2014, 50 (15): 220- 222. doi: 10.3778/j.issn.1002-8331.1209-0297
	WU L L , PAN G , HUANG Q G . Method of multiple sources information fusion for complex system with small sample test based on ML-Ⅱ theory[J]. Computer Engineering and Applications, 2014, 50 (15): 220- 222. doi: 10.3778/j.issn.1002-8331.1209-0297
29	冯静, 孙权, 罗鹏程, 等. 装备可靠性与综合保障[M]. 长沙: 国防科技大学出版社, 2008.
	FENG J , SUN Q , LUO P C , et al. Equipment reliability and comprehensive support[M]. Changsha: National University of Defense Technology Press, 2008.
30	PENG W W , HUANG H Z , XIE M , et al. A Bayesian approach for system reliability analysis with multilevel pass-fail, lifetime and degradation data sets[J]. IEEE Trans.on Reliability, 2013, 62 (3): 689- 699. doi: 10.1109/TR.2013.2270424

寿命分布参数	参数取值
λ₁	5.7×10^-13
λ₂	3.0×10^-12
λ₃	4.5×10^-10
λ₄	1.5×10^-10
λ₅	1.4×10^-15
λ₆	2.9×10^-8
β₁	2.4
β₂	2.6
β₃	2
β₄	2
β₅	3

k	本文方法			仿真方法
k	点估计/年	80%置信区间/年	MSE	点估计/年	80%置信区间/年	MSE
1 000	5.40	[2.93, 7.78]	12.86	6.41	[3.59, 9.10]	22.33
2 000	5.78	[3.25, 8.21]	12.73	6.39	[3.58, 9.09]	23.46
5 000	5.98	[3.32, 8.53]	13.17	6.28	[3.56, 8.91]	22.55
10 000	5.87	[3.28, 8.35]	12.36	5.72	[3.17, 8.16]	17.80
20 000	5.99	[3.36, 8.52]	12.57	5.91	[3.31, 8.40]	19.04
50 000	5.81	[3.23, 8.27]	12.14	5.90	[3.29, 8.39]	18.95

参数名称	参数值
λ₁	0.039 5
λ₂	0.049 5
α₃₄	0.716 7
λ_34a	0.072 4
λ_34b	0.108 9
λ_34c	0.112 5
λ₅	0.031 4
α₆	2.687 0
λ₆	1.47×10^-4
v₇	1.778 0
λ₇	0.386 0
