快速仅测角相对导航初始相对轨道确定方法

doi:10.12305/j.issn.1001-506X.2021.04.24

摘要/Abstract

摘要：

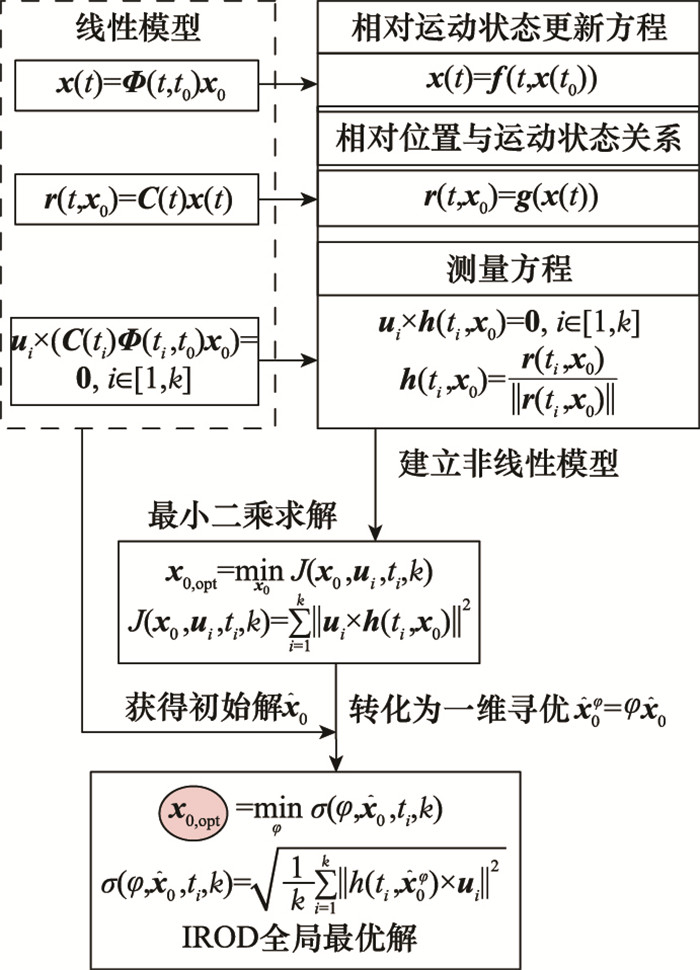

针对线性化的测量模型和相对运动模型会导致仅测角相对导航星间距离不可观测的问题, 提出一种快速仅测角相对导航初始相对轨道确定(initial relative orbit determination, IROD)方法。首先, 采用相对轨道根数(relative orbit elements, ROE)建立非线性相对运动模型, 该模型可以将星间距离和相对轨道形状进行解耦。然后, 在线性理论获得的共线性解附近系统地改变星间距离大小, 并执行一系列最小二乘拟合, 随后采用二分法或牛顿迭代法快速在全局范围内找到最小拟合残差的最优解。最后, 通过搭建的半物理仿真平台对该方法在4种轨道场景中的性能进行仿真测试, 验证了所提方法的有效性。

关键词: 仅测角相对导航, 初始相对轨道确定, 二分法, 牛顿迭代法, 最小二乘拟合

Abstract:

For the problem of unobservable inter-satellite distance of angles-only relative navigation caused by the linear measurement model and relative motion model, a fast initial relative orbit determination (IROD) method of angles-only relative navigation is proposed. Firstly, the relative orbit elements (ROE) is used to establish a nonlinear relative motion model, which can decouple the inter-satellite distance and the relative orbital shape. Then, the inter-satellite distance near the collinear solution obtained by linear theory is changed, systematically, and a series of least-square fitting is performed, and then the dichotomy or Newton iteration method is used to find the optimal solution of the minimum fitting residual quickly in the global range. Finally, a semi-physical simulation platform is built to test the performances of the method in 4 orbital scenarios, and the effectiveness of the proposed method is verified.

Key words: angles-only relative navigation, initial relative orbit determination (IROD), dichotomy method, Newton iteration method, least-square fitting

中图分类号:

V249.32

杜荣华, 张翔, 廖文和. 快速仅测角相对导航初始相对轨道确定方法[J]. 系统工程与电子技术, 2021, 43(4): 1057-1068.

Ronghua DU, Xiang ZHANG, Wenhe LIAO. Fast initial relative orbit determination method of angles-only relative navigation[J]. Systems Engineering and Electronics, 2021, 43(4): 1057-1068.

图/表 17

图1

图2

图3

图4

图5

表1

图6

表2

表3

图7

图8

图9

图10

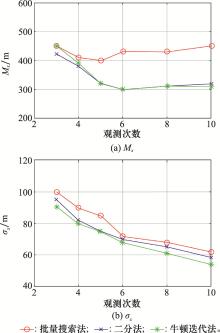

图11

图12

图13

图14

参考文献 45

1	RISTIC B , ARULAMPALAM M S . Tracking a manoeuvering target using angle-only measurements: algorithms and perfor-mance[J]. Signal Processing, 2003, 83 (2): 1223- 1238.
2	万卫星, 魏勇, 郭正堂, 等. 从深空探测大国迈向行星科学强国[J]. 中国科学院院刊, 2019, 34 (7): 748- 755.
	WAN W X , WEI Y , GUO Z T , et al. Toward a power of planetary science from a gaint of deep space exploration[J]. Bulletin of Chinese Academy of Science, 2019, 34 (7): 748- 755.
3	ZHANG Y , WANG X Y , XI K W , et al. Impact analysis of solar irradiance change on precision orbit determination of navigation satellites[J]. Transaction of Nanjing University of Aeronautics and Astronautics, 2019, 36 (6): 889- 901.
4	WANG Y , WANG X G , CUI N G . Robust decentralised state estimation for formation flying spacecraft[J]. IET Radar, Sonar and Navigation, 2019, 13 (5): 814- 823. doi: 10.1049/iet-rsn.2018.5348
5	LIU R X , LIU M , LIU Y . Nonlinear optimal tracking control of spacecraft formation flying with collision avoidance[J]. Transaction of the Institute of Measurement and Control, 2019, 41 (4): 889- 899. doi: 10.1177/0142331218773506
6	RAJA C. Autonomous orbital rendezvous using angles-only navi-gation[D]. Logan: Utah State University, 2001.
7	DEHANN F, BRENT E T, STEVE U, et al. Vision-based rela-tive navigation and control for autonomous spacecraft inspection of an unknown object[C]//Proc. of the Guidance, Navigation, and Control and Co-located Conferences, 2013.
8	梁斌, 何英, 邹瑜, 等. ToF相机在空间非合作目标近距离测量中的应用[J]. 宇航学报, 2016, 37 (9): 1080- 1088. doi: 10.3873/j.issn.1000-1328.2016.09.007
	LIANG B , HE Y , ZHOU Y , et al. Application of ToF camera in close-range measurement of uncooperative target in space[J]. Journal of Astronautics, 2016, 37 (9): 1080- 1088. doi: 10.3873/j.issn.1000-1328.2016.09.007
9	GONG B C , LI W , LI S , et al. Angles-only initial relative orbit determination algorithm for noncooperative spacecraft proximity operations[J]. Astrodynamics, 2018, 2 (3): 217- 231. doi: 10.1007/s42064-018-0022-0
10	GAIAS G , ARDAENS J S . Flight demonstration of autonomous noncooperative rendezvous in low earth orbit[J]. Journal of Gui-dance, Control, and Dynamics, 2018, 41 (6): 1137- 1354.
11	WOFFINDEN D C , GELLER D K . Navigating the road to autonomous orbital rendezvous[J]. Journal of Spacecraft and Rockets, 2007, 44 (4): 898- 909. doi: 10.2514/1.30734
12	葛祥雨, 黄杰, 周前祥, 等. 空间站在轨维修操作复杂度评价及试验验证[J]. 北京航空航天大学学报, 2019, 45 (11): 2228- 2236.
	GE X Y , HUANG J , ZHOU Q X , et al. Evaluation of space station on-orbit maintenance operation complexity and its experimental validation[J]. Journal of Beijing University of Aeronautics and Astronautics, 2019, 45 (11): 2228- 2236.
13	DAVID V. Evaluating gooding angles-only orbit determination of space based space surveilliance measurements[C]//Proc. of the 8th US/Russian Space Surveillance Workshop, 2010.
14	KEITH L. Space-based relative multitarget tracking[D]. Lola: Missouri University of Science and Technology, 2015.
15	PERSSON S , VELDMAN S , BODIN P . PRISMA—A formation flying project in implementation phase[J]. Acta Astronautica, 2009, 65 (9): 1360- 1374.
16	CARLSSON A. General control system for both sounding rockets and satellites[C]//Proc. of the 18th ESA Symposium on European Rockets and Balloon Programmes and Related Research, 2007.
17	NOTEBORN R, BODIN P, LARSSON R, et al. Flight results from the PRISMA optical line of sight based autonomous rendezvous experiment[C]//Proc. of the 4th International Confe-rence on Spacecraft Formation Flying Missions and Technologies, 2011.
18	D'AMICO S , ARDAENS J S , LARSSON R . Spaceborne autonomous formation-flying experiment on the PRISMA mission[J]. Journal of Guidance, Control, and Dynamics, 2012, 35 (3): 834- 850. doi: 10.2514/1.55638
19	D'AMICO S , ARDAENS J S , GAIAS G , et al. Noncooperative rendezvous using angles-only optical navigation: system design and flight results[J]. Journal of Guidance, Control, and Dynamics, 2013, 36 (6): 1576- 1595. doi: 10.2514/1.59236
20	FLORIO S D , D'AMICO S , RADICE G . Flight results of precise autonomous orbit keeping experiment on PRISMA mission[J]. Journal of Spacecraft and Rockets, 2013, 50 (3): 662- 674. doi: 10.2514/1.A32347
21	BODIN P . PRISMA: an in-orbit test bed for guidance, navigation, and control experiments[J]. Journal of Spacecraft and Rockets, 2015, 46 (3): 615- 623.
22	GELLER D K . Autonomous orbital rendezvous using angles-only navigation[J]. Massachusetts Institute of Technology, 2012, 30 (5): 1455- 1469.
23	GAIAS G , ARDAENS J S . In-orbit experience and lessons learned from the AVANTI experiment[J]. Acta Astronautica, 2018, 1 (42): 1- 11.
24	WOFFINDEN D C. Angles-only navigation for autonomous orbital rendezvous[D]. Logan: Utah State University, 2008.
25	龚柏春. 航天器自主交会仅测角相对轨道确定方法研究[D]. 西安: 西北工业大学, 2016.
	GONG B C. Research on angles-only relative orbit determination algorithms for spacecraft autonomous rendezvous[D]. Xi'an: Northwestern Polytechnical University, 2016.
26	PI J, BANG H. Trajectory design for satellite relative angles-only navigation[C]//Proc. of the 9th International Conference on Mathematical Problems in Engineering, Aerospace and Sciences, 2012: 747-751.
27	PI J , BANG H . Trajectory design for improving observability of angles-only relative navigation between two satellites[J]. Journal of the Astronautical Sciences, 2014, 61 (4): 391- 412. doi: 10.1007/s40295-014-0016-y
28	JAGAT A, SINCLAIR A. Control of spacecraft relative motion using angles-only navigation[C]//Proc. of the AAS/AIAA Astrodynamics Specialist Conference, 2015.
29	GELLER D K , KLEIN I . Angles-only navigation state observability during orbital proximity operations[J]. Journal of Gui-dance, Control, and Dynamics, 2014, 37 (6): 1976- 1983. doi: 10.2514/1.G000133
30	SULLIVAN J, KOENIG A, D'AMICO S. Improved maneuver-free approach to angles-only navigation for space rendezvous[C]//Proc. of the 26th AAS/AIAA Space Flight Mechanics Meeting, 2016.
31	GELLER D K , LOVELL T A . Angles-only initial relative orbit determination performance analysis using cylindrical coordinates[J]. The Journal of the Astronautical Sciences, 2017, 64 (1): 72- 96. doi: 10.1007/s40295-016-0095-z
32	王楷, 陈统, 徐世杰. 基于双视线测量的相对导航方法[J]. 航空学报, 2011, 32 (6): 1084- 1091.
	WANG K , CHEN T , XU S J . Relative navigation method based on dual line-of-sight measurement[J]. Acta Aeronautica Sinica, 2011, 32 (6): 1084- 1091.
33	刘光明, 廖瑛, 文援兰, 等. 基于双星编队的空间非合作目标联合定轨方法[J]. 宇航学报, 2010, 31 (9): 2095- 2100. doi: 10.3873/j.issn.1000-1328.2010.09.006
	LIU G M , LIAO Y , WEN Y L , et al. Two-satellite formation-based non-cooperative space target integrated orbit determination[J]. Journal of Astronautics, 2010, 31 (9): 2095- 2100. doi: 10.3873/j.issn.1000-1328.2010.09.006
34	WOFFINDEN D C , GELLER D K . Observability criteria for angles-only navigation[J]. IEEE Trans.on Aerospace and Electronic System, 2009, 45 (3): 1194- 1208. doi: 10.1109/TAES.2009.5259193
35	ARDAENS J S , GAIAS G . A numerical approach to the pro-blem of angles-only initial relative orbit determination in low earth orbit[J]. Advances in Space Research, 2019, 63, 3884- 3899. doi: 10.1016/j.asr.2019.03.001
36	DEBRUIJN F , GILL E , HOW J . Comparative analysis of Cartesian and curvilinear Clohessy-Wiltshire equations[J]. Journal of Aerospace Engineering, Sciences and Applications, 2011, 3 (2): 1- 15. doi: 10.7446/jaesa.0302.01
37	GIM D W , ALFRIEND K T . State transition matrix of relative motion for the perturbed noncircular reference orbit[J]. Journal of Guidance, Control, and Dynamics, 2003, 26 (6): 956- 971. doi: 10.2514/2.6924
38	BROUWER D . Solution of the problem of artificial satellite theory without drag[J]. Astronautical Journal, 1959, 64 (9): 378- 397.
39	LYDDANE R H . Small eccentricities or inclinations in the brouwer theory of the artificial satellite[J]. Astronomical Journal, 1963, 68 (8): 555- 558.
40	GAIAS G , D'AMICO S , ARDAENS J S . Angles-only navigation to a noncooperative satellite using relative orbital elements[J]. Journal of Guidance, Control, and Dynamics, 2014, 37 (2): 439- 451. doi: 10.2514/1.61494
41	ARDAENS J S , GAIAS G . Flight demonstration of spaceborne real-time angles-only navigation to a noncooperative target in low earth orbit[J]. Acta Astronautica, 2018, 153, 367- 382. doi: 10.1016/j.actaastro.2018.01.044
42	GAIAS G , ARDAENS J S , MONTENBRUCK O . Model of J2 perturbed satellite relative motion with time-varying differential drag[J]. Celestial Mechanics and Dynamical Astronomy, 2015, 123 (4): 411- 433. doi: 10.1007/s10569-015-9643-2
43	MONTENBRUCK O , KIRSCHNER M , D'AMICO S , et al. E/I-vector separation for safe switching of the GRACE formation[J]. Aerospace Science and Technology, 2016, 10 (7): 628- 635.
44	ARDAENS J S , D'AMICO S . Spaceborne autonomous relative control system for dual satellite formations[J]. Journal of Guidance, Control, and Dynamics, 2009, 32 (6): 1859- 1870. doi: 10.2514/1.42855
45	ARDAENS J S , D'AMICO S . Nonlinear Kalman filtering for improved angles-only navigation using relative orbital elements[J]. Journal of Guidance, Control, and Dynamics, 2017, 40 (9): 2183- 2200. doi: 10.2514/1.G002719

参数	变量	仿真值
空间目标初始轨道根数	(a, e, i, Ω, ω, M)	(6 878.137 km, 0, 40°, 120°, 0°, 50°)
初始ROE (场景1)	(aδa, aδe_x, aδe_y, aδi_x, aδi_y, aδλ)	(0, 0.5, 0, -0.5, 0, -30)km
初始ROE (场景2)	(aδa, aδe_x, aδe_y, aδi_x, aδi_y, aδλ)	(-0.15, 0.3, 0, -0.3, 0, -20)km
初始ROE (场景3)	(aδa, aδe_x, aδe_y, aδi_x, aδi_y, aδλ)	(0, 0, -0.2, 0, 0.2, -5)km
初始ROE (场景4)	(aδa, aδe_x, aδe_y, aδi_x, aδi_y, aδλ)	(0, 0, 0, 0, 0, -0.5)km
相机测量误差标准差	σ_α=σ_ε	18″
相机测量偏差标准差	σ_{b, α}=σ_{b, ε}	5″
姿态测量误差标准差	(σ_{att, off-axis}, σ_{att, roll})	(6, 40)″

轨道场景	方法	用时/s
场景1	批量搜索法	13.74
	二分法	2.32
	牛顿迭代法	0.65
场景2	批量搜索法	14.78
	二分法	3.13
	牛顿迭代法	0.82
场景3	批量搜索法	13.51
	二分法	2.16
	牛顿迭代法	0.53
场景4	批量搜索法	23.22
	二分法	4.14
	牛顿迭代法	1.03

轨道场景	百分比误差P_x/%
轨道场景	批量搜索法	二分法	牛顿迭代法
场景1	7.07	7.03	5.87
场景2	6.55	5.45	5.35
场景3	5.20	3.80	3.80
场景4	35.8	34.0	32.4
