Impact angle constrained fuzzy adaptive fault tolerant IGC method for Ski-to-Turn missiles with unsteady aerodynamics and multiple disturbances

doi:10.23919/JSEE.2022.000116

Journal of Systems Engineering and Electronics ›› 2022, Vol. 33 ›› Issue (5): 1210-1226.doi: 10.23919/JSEE.2022.000116

收稿日期:2021-10-27 接受日期:2022-07-12 出版日期:2022-10-27 发布日期:2022-10-27

Impact angle constrained fuzzy adaptive fault tolerant IGC method for Ski-to-Turn missiles with unsteady aerodynamics and multiple disturbances

Hang GUO^1,*(), Zheng WANG¹(), Bin FU²(), Kang CHEN²(), Wenxing FU²(), Jie YAN¹()

¹ Research Center for Unmanned System Strategy Development, Northwestern Polytechnical University, Xi’an 710072, China
² Unmanned System Research Institute, Northwestern Polytechnical University, Xi’an 710072, China

Received:2021-10-27 Accepted:2022-07-12 Online:2022-10-27 Published:2022-10-27
Contact: Hang GUO E-mail:jsguoh@nwpu.edu.cn;wz_nwpu@126.com;binfu@nwpu.edu.cn;mars_legend@163.com;wenxingfu@nwpu.edu.cn;jyan@nwpu.edu.cn
About author:|GUO Hang was born in 1990. He received his B.S., M.S., and Ph.D. degrees in navigation, guidance, and control from Northwestern Polytechnical University, in 2011, 2014, and 2019 respectively. He is currently an associate research fellow in Northwestern Polytechnical University. His research interests are hypersonic vehicle flight dynamics, guidance, and control. E-mail: jsguoh@nwpu.edu.cn||WANG Zheng was born in 1992. He received his B.S., M.S., and Ph.D. degrees in navigation, guidance, and control from Northwestern Polytechnical University in 2013, 2016, and 2020 respectively. He is currently an associate research fellow in Northwestern Polytechnical University. His research focus on vehicle flight control theory. E-mail: wz_nwpu@126.com||FU Bin was born in 1989. He received his B.S., M.S., and Ph.D. degrees in navigation, guidance, and control from Northwestern Polytechnical University in 2011, 2014, and 2019 respectively. He is currently an associate research fellow in Northwestern Polytechnical University. His research interests are interception for high maneuver targets and intelligent air combat. E-mail: binfu@nwpu.edu.cn||CHEN Kang was born in 1980. He received his B.S., M.S., and Ph.D. degrees in navigation, guidance, and control from Northwestern Polytechnical University in 2001, 2004, and 2009 respectively. He is currently an associate professor in Northwestern Polytechnical University. His research focuses on interception for high maneuver targets. E-mail: mars_legend@163.com||FU Wenxing was born in 1974. He received his Ph.D. degree in navigation, guidance, and control from Northwestern Polytechnical University in 2006. He is currently an professor in Northwestern Polytechnical University. His research interests are system simulation and intelligent unmanned aircraft design. E-mail: wenxingfu@nwpu.edu.cn||YAN Jie was born in 1960. He received his Ph.D. degree in navigation, guidance, and control from Northwestern Polytechnical University in 1988. He is currently an professor in Northwestern Polytechnical University. His research interests are flight guidance and control, and modern combat concept. E-mail: jyan@nwpu.edu.cn
Supported by:
This work was supported by the National Natural Science Foundation of China (62003264)

摘要/Abstract

Abstract:

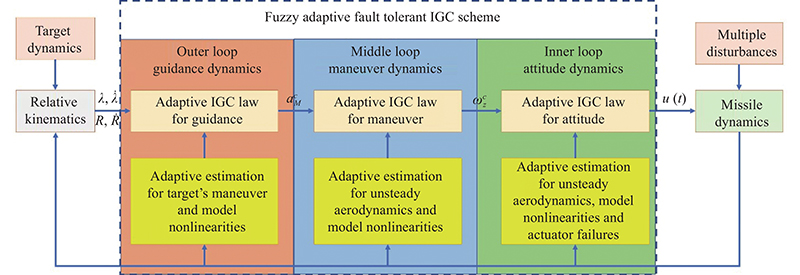

An impact angle constrained fuzzy adaptive fault tolerant integrated guidance and control method for Ski-to-Turn (STT) missiles subject to unsteady aerodynamics and multiple disturbances is proposed. Unsteady aerodynamics appears when flight vehicles are in a transonic state or confronted with unstable airflow. Meanwhile, actuator failures and multisource model uncertainties are introduced. However, the boundaries of these multisource uncertainties are assumed unknown. The target is assumed to execute high maneuver movement which is unknown to the missile. Furthermore, impact angle constraint puts forward higher requirements for the interception accuracy of the integrated guidance and control (IGC) method. The impact angle constraint and the precise interception are established as the object of the IGC method. Then, the boundaries of the lumped disturbances are estimated, and several fuzzy logic systems are introduced to compensate the unknown nonlinearities and uncertainties. Next, a series of adaptive laws are developed so that the undesirable effects arising from unsteady aerodynamics, actuator failures and unknown uncertainties could be suppressed. Consequently, an impact angle constrained fuzzy adaptive fault tolerant IGC method with three loops is constructed and a perfect hit-to-kill interception with specified impact angle can be implemented. Eventually, the numerical simulations are conducted to verify the effectiveness and superiority of the proposed method.

Key words: integrated guidance and control (IGC), impact angle constraint, unsteady aerodynamics, fault tolerant control (FTC), actuator failures

. [J]. Journal of Systems Engineering and Electronics, 2022, 33(5): 1210-1226.

Hang GUO, Zheng WANG, Bin FU, Kang CHEN, Wenxing FU, Jie YAN. Impact angle constrained fuzzy adaptive fault tolerant IGC method for Ski-to-Turn missiles with unsteady aerodynamics and multiple disturbances[J]. Journal of Systems Engineering and Electronics, 2022, 33(5): 1210-1226.

图/表 15

参考文献 56

1	LEVY M, SHIMA T, GUTMAN S Linear quadratic integrated versus separated autopilot-guidance design. Journal of Guidance, Control and Dynamics, 2013, 36 (6): 1722- 1730. doi: 10.2514/1.61363
2	TIAN B L, ZONG Q Optimal guidance for reentry vehicles based on indirect legendre pseudospectral method. Acta Astronautica, 2011, 68 (7/8): 1176- 1184.
3	WANG W H, XIONG S F, WANG S, et al Three dimensional impact angle constrained integrated guidance and control for missiles with input saturation and actuator failures. Aerospace Science and Technology, 2016, 53 (6): 169- 187.
4	WANG X F, ZHENG Y Y, LIN H Integrated guidance and control law for cooperative attack of multiple missiles. Aerospace Science & Technology, 2015, 42 (4/5): 1- 11.
5	WANG J H, LIU L H, ZHAO T, et al Integrated guidance and control for hypersonic vehicles in dive phase with multiple constraints. Aerospace Science and Technology, 2016, 53 (6): 103- 115.
6	WANG X, WANG J Partial integrated guidance and control for missiles with three-dimensional impact angle constraints. Journal of Guidance, Control and Dynamics, 2014, 37 (2): 644- 657.
7	WILLIAMS D E, RICHMAN J, FRIEDLAND B Design of an integrated strapdown guidance and control system for a tactical missile. Proc. of the AIAA Guidance and Control Conference, 1983, 57- 66. doi: 10.2514/6.1983-2169
8	LIN C F, BIBEL J E, OHLMEYER E, et al Optimal design of integrated missile guidance and control. Proc. of the AIAA and SAE World Aviation Conference, 1998, 985519.
9	PALUMBO N F, REARDON B E, BLAUWKAMP R A Integrated guidance and control for homing missiles. Johns Hopkins Apl Technical Digest, 2005, 25 (2): 121- 139.
10	YANG X Q, LI J, DONG Y Flexible air-breathing hypersonic vehicle control based on a novel non-singular fast terminal sliding mode control and nonlinear disturbance observer. Proceedings of the Institution of Mechanical Engineers, Part G: Journal of Aerospace Engineering, 2017, 231 (11): 2132- 2145. doi: 10.1177/0954410016664913
11	YANG Y N Positioning control for stratospheric satellites subject to dynamics uncertainty and input constraints. Aerospace Science and Technology, 2019, 86 (3): 534- 541.
12	SHIMA T, IDAN M, GOLAN O M Sliding-mode control for integrated missile autopilot guidance. Journal of Guidance, Control and Dynamics, 2006, 29 (2): 250- 260. doi: 10.2514/1.14951
13	YANG S J, GUO J G, ZHOU J New integrated guidance and control of homing missiles with an impact angle against a ground target. International Journal of Aerospace Engineering, 2018, 2018, 3968242.
14	SHTESSEL Y B, TOURNES C H Integrated higher-order sliding mode guidance and autopilot for dual control missiles. Journal of Guidance, Control and Dynamics, 2009, 32 (1): 79- 94.
15	YAMASAKI T, BALAKRISHNAN S N, TAKANO H Integrated guidance and autopilot design for a chasing UAV via high-order sliding modes. Journal of the Franklin Institute, 2012, 349 (2): 531- 558. doi: 10.1016/j.jfranklin.2011.08.004
16	WU P, YANG M Integrated guidance and control design for missile with terminal impact angle constraint based on sliding mode control. Journal of Systems Engineering and Electronics, 2010, 21 (4): 623- 628. doi: 10.3969/j.issn.1004-4132.2010.04.015
17	ZHANG W J, FU S N, LI W, et al An impact angle constraint integral sliding mode guidance law for maneuvering targets interception. Journal of Systems Engineering and Electronics, 2020, 31 (1): 168- 184.
18	LI W, WEN Q Q, HE L, et al Three-dimensional impact angle constrained distributed cooperative guidance law for anti-ship missiles. Journal of Systems Engineering and Electronics, 2021, 32 (2): 447- 459. doi: 10.23919/JSEE.2021.000038
19	SHAMAGHDARI S, NIKRAVESH S, HAERI M Integrated guidance and control of elastic flight vehicle based on robust MPC. International Journal of Robust Nonlinear Control, 2015, 25 (15): 2608- 2630. doi: 10.1002/rnc.3215
20	HU X X, KARIMI H R, WU L G, et al Model predictive control-based non-linear fault tolerant control for air-breathing hypersonic vehicles. IET Control Theory and Applications, 2014, 8 (13): 1147- 1153. doi: 10.1049/iet-cta.2013.0986
21	HWANG T W, TAHK M J Integrated backstepping design of missile guidance and control with robust disturbance observer. Proc. of the SICE-ICASE International Joint Conference, 2006, 4911- 4915.
22	CHANG J, GUO Z Y, CIESLAK J, et al Integrated guidance and control design for the hypersonic interceptor based on adaptive incremental backstepping technique. Aerospace Science and Technology, 2019, 89 (6): 318- 332.
23	YAN H, WANG X H, YU B F, et al Adaptive integrated guidance and control based on backstepping and input-to-state stability. Asian Journal of Control, 2014, 16 (2): 602- 608. doi: 10.1002/asjc.682
24	MENON P K, SWERIDUK G D, OHLMEYER E J, et al Integrated guidance and control of moving mass actuated kinetic warheads. Journal of Guidance, Control and Dynamics, 2004, 27 (1): 118- 126.
25	MENON P K, OHLMEYER E J Integrated design of agile missile guidance and autopilot systems. Control Engineering Practice, 2001, 9 (10): 1095- 1106. doi: 10.1016/S0967-0661(01)00082-X
26	VADDI S, MENON P K, OHLMEYER E J Numerical state-dependent riccati equation approach for missile integrated guidance control. Journal of Guidance, Control and Dynamics, 2009, 32 (2): 699- 703.
27	YUN J S, RYOO C K Integrated guidance and control law with impact angle constraint. Proc. of the International Conference on Control, Automation and Systems, 2011, 1239- 1243.
28	MING C, WANG X M, SUN R S A novel non-singular terminal sliding mode control-based integrated missile guidance and control with impact angle constraint. Aerospace Science and Technology, 2019, 94 (11): 105368.
29	KHANKALANTARY S, SHEIKHOLESLAM F Robust extended state observer-based three dimensional integrated guidance and control design for interceptors with impact angle and input saturation constraints. ISA Transactions, 2020, 104 (9): 299- 309.
30	WANG Z, YUAN J P, PAN Y O, et al Adaptive neural control for high order Markovian jump nonlinear systems with unmodeled dynamics and dead zone inputs. Neurocomputing, 2017, 247 (7): 62- 72.
31	HAMAYUN M T, EDWARDS C, ALWI H, et al A fault tolerant direct control allocation scheme with integral sliding modes. International Journal of Applied Mathematics & Computer Science, 2015, 25 (1): 93- 102.
32	SHEN Q, WANG D W, ZHU S Q, et al Inertia-free fault-tolerant spacecraft attitude tracking using control allocation. Automatica, 2015, 62 (3): 114- 121.
33	YANG H J, SHI P, LI X, et al Fault-tolerant control for a class of TCS fuzzy systems via delta operator approach. Signal Processing, 2014, 98 (5): 166- 173.
34	ZHANG J H, SHI P, XIA Y Q Robust adaptive sliding-mode control for fuzzy systems with mismatched uncertainties. IEEE Trans. on Fuzzy Systems, 2010, 18 (4): 700- 711. doi: 10.1109/TFUZZ.2010.2047506
35	LEVANT A, ALELISHVILI L Integral high-order sliding modes. IEEE Trans. on Automatic Control, 2007, 52 (7): 1278- 1282. doi: 10.1109/TAC.2007.900830
36	SHTESSEL Y B, MORENO J A, FRIDMAN L M. Twisting sliding mode control with adaptation: Lyapunov design, methodology and application. Automatica, 2017, 75: 229−235.
37	BOSKOVIC J D, JACKSON J A, MEHRA R K, et al Multiple-model adaptive fault-tolerant control of a planetary lander. Journal of Guidance, Control and Dynamics, 2009, 32 (6): 1812- 1826.
38	FU S S, QIU J B, CHEN L H, et al Adaptive fuzzy observer design for a class of switched nonlinear systems with actuator and sensor faults. IEEE Trans. on Fuzzy systems, 2018, 26 (6): 3730- 3742. doi: 10.1109/TFUZZ.2018.2848253
39	CRISTOFARO A, JOHANSEN T A Fault tolerant control allocation using unknown input observers. Automatica, 2014, 50 (7): 1891- 1897. doi: 10.1016/j.automatica.2014.05.007
40	CHEN L H, LIU M, HUANG X L, et al Adaptive fuzzy sliding mode control for network-based nonlinear systems with actuator failures. IEEE Trans. on Fuzzy Systems, 2017, 26 (3): 1311- 1323.
41	WANG Z, PAN Y P Robust adaptive fault tolerant control for a class of nonlinear systems with dynamic uncertainties. International Journal for Light and Electron Optics, 2017, 131 (2): 941- 952.
42	WU L B, YANG G H Robust adaptive fault-tolerant control for a class of uncertain nonlinear systems with multiple time delays. Journal of Process Control, 2016, 41, 1- 13. doi: 10.1016/j.jprocont.2016.02.001
43	YANG H Y, WANG H Q Robust adaptive fault-tolerant control for uncertain system with unmodeled dynamics based on fuzzy approximation. Neurocomputing, 2016, 173 (1): 1660- 1670.
44	FAN H J, LIU B, WANG W, et al. Adaptive fault-tolerant stabilization for nonlinear systems with Markovian jumping actuator failures and stochastic noises. Automatica, 2015, 51: 200–209.
45	POLYCARPOU M, IOANNOU P A robust adaptive nonlinear control design. Automatica, 1996, 32 (3): 423- 427.
46	SUN K K, MOU S S, QIU J B, et al Adaptive fuzzy control for nontriangular structural stochastic switched nonlinear systems with full state constraints. IEEE Trans. on Fuzzy Systems, 2019, 27 (8): 1587- 1601. doi: 10.1109/TFUZZ.2018.2883374
47	TONG S C, LI Y M, SHI P Fuzzy adaptive backstepping robust control for SISO nonlinear system with dynamic uncertainties. Information Sciences, 2009, 179 (9): 1319- 1332. doi: 10.1016/j.ins.2009.01.002
48	WANG L J, BASIN M V, LI H Y, et al Observer-based composite adaptive fuzzy control for nonstrict-feedback systems with actuator failures. IEEE Trans. on Fuzzy Systems, 2018, 26 (4): 2336- 2347. doi: 10.1109/TFUZZ.2017.2774185
49	WANG Z, YUAN J P Fuzzy adaptive fault tolerant IGC method for STT missiles with time-varying actuator faults and multisource uncertainties. Journal of the Franklin Institute, 2020, 357 (1): 59- 81. doi: 10.1016/j.jfranklin.2019.09.032
50	ANDERSEN G, KOLONAY R, EASTEP F. Aeroelastic analysis of rolling maneuvers with multiple control surfaces in transonic flight. Proc. of the 39th AIAA/ASME/ASCE/AHS/ASC Structures, Structural Dynamics, and Materials Conference and Exhibit, 1998. DOI: 10.2514/6.1998-1803
51	GREEN B E, CHUNG J J Transonic computational fluid dynamics calculations on preproduction F/A-18 E for stability and control. Journal of Aircraft, 2007, 44 (2): 420- 426. doi: 10.2514/1.22846
52	GHOREYSHI M, CUMMINGS R M, RONCH A D Transonic aerodynamic load modeling of X-31 aircraft pitching motions. AIAA Journal, 2013, 51 (10): 2447- 2464. doi: 10.2514/1.J052309
53	TOMAC M, RIZZI A, JIRASEK A Computational fluid dynamics predictions of control-surface effects for F-16 XL aircraft. Journal of Aircraft, 2017, 54 (2): 395- 408. doi: 10.2514/1.C033260
54	PAUL V G, PERIYASAMY S, NIKAM K. Unsteady aerodynamics analysis for small amplitude pitch oscillations of transonic cruiser aircraft. Proc. of the International Conference on Recent Advances in Aerospace Engineering, 2017. DOI: 10.1109/ICRAAE.2017.8297231.
55	ZHU M L, LI Y H, QIN N, et al Shock control of a low-sweep transonic laminar flow wing. AIAA Journal, 2019, 57 (6): 2408- 2420.
56	YANAMASHETTI G, SINGH D B, SURYANARAYANA G K, et al Passive control of transonic flow over a blunt body using aerospikes. Journal of Spacecraft and Rockets, 2020, 57 (5): 945- 955.

Initial condition parameter	Value
Initial position of the missile $\left( {{x_M},{y_M}} \right)$ /m	(0.0, 3 000.0)
Initial flight path angle of the missile ${\theta _M}$ /rad	0.0
Initial velocity of the missile ${V_M}$ /(m·s^?1)	300.0
Initial pitch angular velocity of the missile ${\omega _z}$ /(rad·s^?1)	0.0
Initial pitch angle of the missile ${\vartheta _M}$ /rad	0.0
Initial position of the target $\left( {{x_T},{y_T}} \right)$ /m	(8 000.0, 6 000.0)
Initial flight path angle of the target ${\theta _T}$ /rad	0.0
Initial velocity of the target ${V_T}$ /(m·s^?1)	100.0

Parameter of aerodynamics coefficients of the missile	Value
$ {C_{D0}},{C_{L0}},C_L^M\left( \alpha \right) $	0.197 7, 0.001 8, ?0.001 8
$C_D^{ {\alpha ^2} },\;C_D^{\alpha _A^2}$ /deg^?2	5.383 8e?4, 5.383 8e?5
$C_L^\alpha ,\;C_L^{ {\alpha _A} }$ /deg^?1	0.271 3, 0.135 7
${m_{z0} },\;m_z^M\left( \alpha \right)$	0.000 8, ?0.000 2
$m_z^\alpha ,\;m_z^{ {\alpha _A} },\;m_z^{ {\delta _z} }$ /deg^?1	?0.040 8, ?0.068 5, ?0.020 4

Missile structural parameter	Value
Mass of the missile m/kg	59.3
Reference area of the missile S/m²	0.02
Reference length of the missile $\bar L$ /m	2.12
Moment of inertia of the missile ${J_z}$ /(kg·m²)	13.94

Parameter	Case 1	Case 2	Case 3
${\lambda ^*}$ /deg	60.0	65.0	50.0
${\alpha _A}$ /deg	0.5	0.5	0.8
${\omega _A}$ /(rad·s^?1)	31.415 9	62.831 9	31.415 9
$ \chi \left( t \right) $	0.7	0.65	0.7

Parameter	Value	Parameter	initial value
k	40.0	s₀	0.0
${c_0},\;{c_1},\;{c_2},\;{c_3}$	1.0, 3.0, 10.0, 30.0	$ {\hat D_{aT}} $	0.5
${\tau _{y2} },\;{\tau _{y3} }$	0.01, 0.01	$ {\hat \tau _{g1}} $	1.0
${p_{ {D_{aT} } } },\;{p_{ {\tau _{g1} } } },\;{p_{ {q_{g1} } } },\;{p_{\mu 1} }$	0.01, 0.01, 0.01, 0.01	$ {\hat q_{g1}} $	1.0
$ {\sigma _{{D_{aT}}}},{\sigma _{{\tau _{g1}}}},{\sigma _{{q_{g1}}}},{\sigma _{\mu 1}} $	10.0, 10.0, 10.0, 20.0	$ {\hat \mu _1} $	0.5
${\varepsilon _{ {D_{aT} } } },\;{\varepsilon _{ {\tau _{g1} } } },\;{\varepsilon _{\mu 1} }$	100.0, 200.0, 20.0	$ {\hat D_{\alpha 2}} $	0.5
${p_{ {D_{\alpha 2} } } },\;{p_{ {\tau _{g2} } } },\;{p_{ {q_{g2} } } },\;{p_{\mu 2} }$	0.01, 0.001, 1e?10, 0.01	$ {\hat \tau _{g2}} $	1.0
${\sigma _{ {D_{\alpha 2} } } },\;{\sigma _{ {\tau _{g2} } } },\;{\sigma _{ {q_{g2} } } },\;{\sigma _{\mu 2} }$	10.0, 50.0, 10.0, 20.0	$ {\hat q_{g2}} $	1e?4
${\varepsilon _{ {D_{\alpha 2} } } },\;{\varepsilon _{ {\tau _{g2} } } },\;{\varepsilon _{\mu 2} }$	100.0, 200.0, 100.0	$ {\hat \mu _2} $	0.5

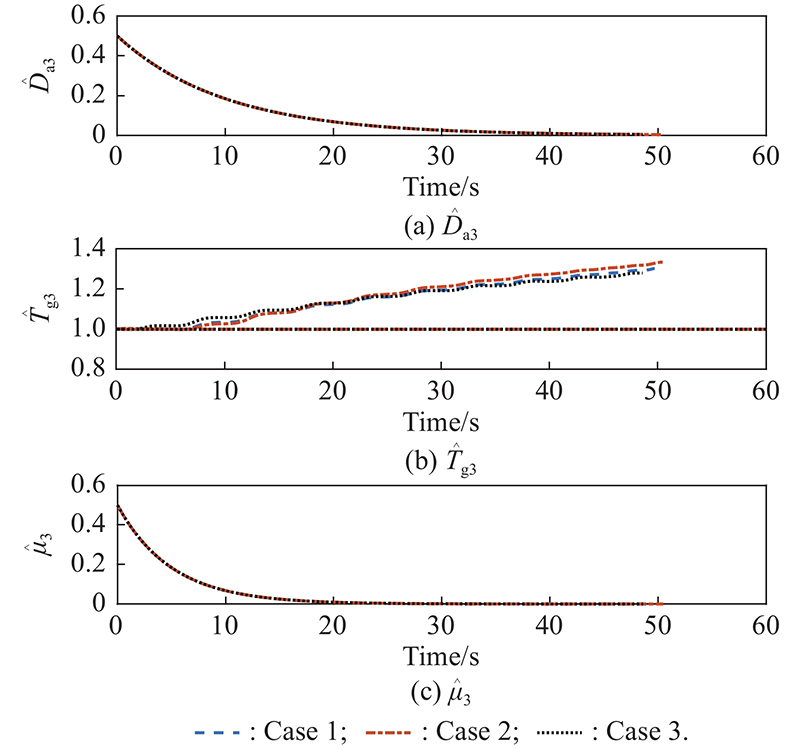

${p_{ {D_{\alpha 3} } } },\;{p_{ {\tau _{g3} } } },\;{p_{\mu 3} }$	0.005, 1e?4, 0.01	$ {\hat D_{\alpha 3}} $	0.5
${\sigma _{ {D_{\alpha 3} } } },\;{\sigma _{ {\tau _{g3} } } },\;{\sigma _{\mu 3} }$	20.0, 10.0, 20.0	$ {\hat \tau _{g3}} $	1.0
${\varepsilon _{ {D_{\alpha 3} } } },\;{\varepsilon _{ {\tau _{g3} } } },\;{\varepsilon _{\mu 3} }$	100.0, 200.0, 100.0	$ {\hat \mu _3} $	0.5
