多频带互相干处理中多目标相位补偿方法

doi:10.12305/j.issn.1001-506X.2022.10.11

系统工程与电子技术 ›› 2022, Vol. 44 ›› Issue (10): 3083-3089.doi: 10.12305/j.issn.1001-506X.2022.10.11

多频带互相干处理中多目标相位补偿方法

王宁^1,^2,^3,*, 吕晓德^1,², 李苗苗^1,^2,³, 刘忠胜^1,²

1. 中国科学院空天信息创新研究院, 北京 100094
2. 微波成像技术国家级重点实验室, 北京 100190
3. 中国科学院大学电子电气与通信工程学院, 北京 100049

收稿日期:2021-04-07 出版日期:2022-09-20 发布日期:2022-10-24
通讯作者: 王宁
作者简介:王宁(1995—), 男, 硕士研究生, 主要研究方向为无源雷达信号处理|吕晓德(1969—), 男, 教授, 博士, 主要研究方向为多源先进雷达探测技术、阵列天线及其信号处理技术、电磁散射及感知技术|李苗苗(1998—), 女, 硕士研究生, 主要研究方向为无源雷达信号处理|刘忠胜(1977—), 男, 副研究员, 博士, 主要研究方向为合成孔径雷达、无源雷达系统设计和集成

Multi-target phase compensation method for multi-band mutual-coherence processing

Ning WANG^1,^2,^3,*, Xiaode LYU^1,², Miaomiao LI^1,^2,³, Zhongsheng LIU^1,²

1. Aerospace Information Research Institute, Chinese Academy of Sciences, Beijing 100094, China
2. National Key Laboratory of Microwave Imaging Technology, Beijing 100190, China
3. School of Electronic, Electrical and Communication Engineering, University of Chinese Academy of Sciences, Beijing 100049, China

Received:2021-04-07 Online:2022-09-20 Published:2022-10-24
Contact: Ning WANG

摘要/Abstract

摘要：

雷达回波中往往存在不同速度的目标，并且不同频带信号之间存在依赖于速度的多普勒相位差异，该差异不能通过乘以统一的固定相位和线性相位得到补偿。本文针对此问题提出一种基于Keystone变换的多普勒相位补偿方法, 定义了一个新的慢时间变量, 将慢时间轴作为快频率的函数进行缩放, 从而对不同速度的目标同时完成多普勒相位补偿。通过仿真分析, 验证了算法的有效性, 为多频带、多目标信号相参处理中的互相干处理提供一种方法。

关键词: 多频带, 多目标, 互相干处理, Keystone变换

Abstract:

There are targets with different velocities in the radar echoes and Doppler phase difference between multi-band signals is dependent on velocity, which cannot be compensated by multiplying the uniform fixed phase and linear phase. This paper proposes a Doppler phase compensation method based on Keystone transform to solve this problem. This method defines a new slow time variable, which scales the slow time axis as a function of fast frequency to complete the Doppler phase compensation for different velocity targets at the same time. The effectiveness of the algorithm is verified by simulation analysis, which provides a method for mutual-coherence processing in multi-band and multi-target signal coherent processing.

Key words: multi-band, multi-target, mutual-coherence processing, Keystone transform

中图分类号:

TN958

王宁, 吕晓德, 李苗苗, 刘忠胜. 多频带互相干处理中多目标相位补偿方法[J]. 系统工程与电子技术, 2022, 44(10): 3083-3089.

Ning WANG, Xiaode LYU, Miaomiao LI, Zhongsheng LIU. Multi-target phase compensation method for multi-band mutual-coherence processing[J]. Systems Engineering and Electronics, 2022, 44(10): 3083-3089.

图/表 10

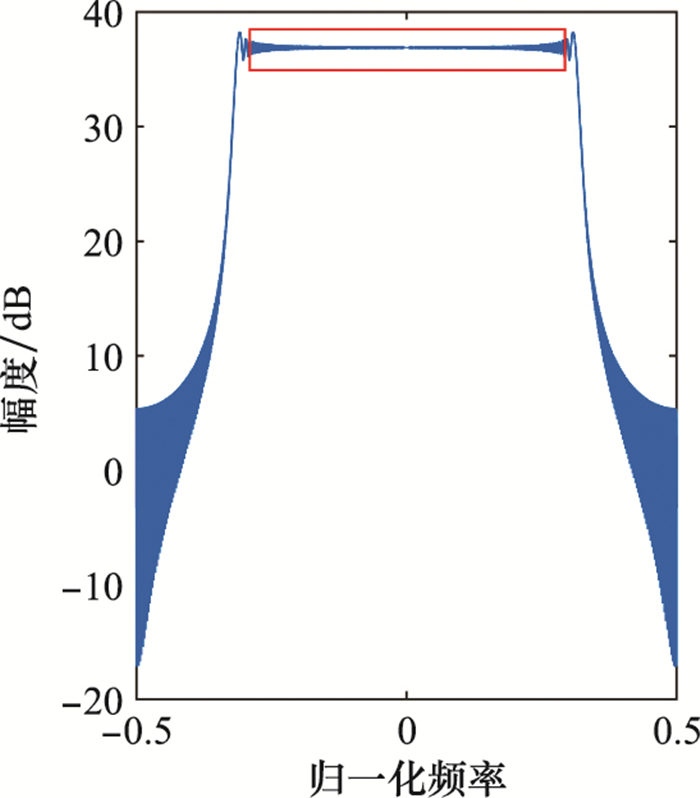

图1

图2

图3

表1

图4

表2

图5

表3

图6

图7

参考文献 30

1	CUOMO K M , PION J E , MAYHAN J T . Ultrawide-band coherent processing[J]. IEEE Trans.on Antennas and Propagation, 1999, 47 (6): 1094- 1107. doi: 10.1109/8.777137
2	SERAFINO G , SCOTTI F , LEMBO L , et al. Toward a new generation of radar systems based on microwave photonic technologies[J]. Journal of Lightwave Technology, 2019, 37 (2): 643- 650. doi: 10.1109/JLT.2019.2894224
3	MALACARNE A , MARESCA S , SCOTTI F , et al. Coherent dual-band radar-over- fiber network with VCSEL-based signal distribution[J]. Journal of Lightwave Technology, 2020, 38 (22): 6257- 6264. doi: 10.1109/JLT.2020.3011800
4	PENG S W , LI S Y , XUE X X , et al. A photonics-based cohe-rent dual-band radar for super-resolution range profile[J]. IEEE Photonics Journal, 2019, 11 (4): 1- 8.
5	熊娣, 王俊岭, 赵莉芝, 等. 基于酉ESPRIT的多频带融合ISAR成像[J]. 电子与信息学报, 2019, 41 (2): 285- 292.
	XIONG D , WANG J L , ZHAO L Z , et al. Unitary ESPRIT based multiband fusion ISAR imaging[J]. Journal of Electronics and Information Technology, 2019, 41 (2): 285- 292.
6	田彪, 刘洋, 呼鹏江, 等. 宽带逆合成孔径雷达高分辨成像技术综述[J]. 雷达学报, 2020, 9 (5): 765- 802.
	TIAN B , LIU Y , HU P J , et al. Review of high-resolution imaging techniques of wideband inverse synthetic aperture radar[J]. Journal of Radars, 2020, 9 (5): 765- 802.
7	ZHU X X , GUO B F , HU W H , et al. Scene segmentation of multi-band ISAR fusion imaging based on MB-PCSBL[J]. IEEE Sensors Journal, 2021, 21 (3): 3520- 3532. doi: 10.1109/JSEN.2020.3026109
8	王成. 雷达信号层融合成像技术研究[D]. 长沙: 国防科学技术大学, 2006.
	WANG C. Research on radar signal level fusion imaging techniques[D]. Changsha: National University of Defense Technology, 2006.
9	TIAN J H , SUN J P , WANG G H , et al. Multiband radar signal coherent fusion processing with IAA and apFFT[J]. IEEE Signal Processing Letters, 2013, 20 (5): 463- 466. doi: 10.1109/LSP.2013.2251631
10	邹永强, 高勋章, 黎湘. 低信噪比下多频段雷达数据高精度相参配准[J]. 系统工程与电子技术, 2015, 37 (1): 48- 54.
	ZOU Y Q , GAO X Z , LI X . High precision coherent compensation for multiband radar data at low SNR[J]. Systems Engineering and Electronics, 2015, 37 (1): 48- 54.
11	XIONG D, WANG J L, QI X Y, et al. A coherent compensation method for multiband fusion imaging[C]//Proc. of the IEEE Radar Conference, 2017: 1024-1027.
12	XIONG D , WANG J L , ZHAO L Z , et al. Sub-band mutual-coherence compensation in multiband fusion ISAR imaging[J]. IET Radar, Sonar & Navigation, 2019, 13 (7): 1056- 1062.
13	ZHU X X , LIU L M , GUO B F , et al. Coherent compensation and high-resolution technology of multi-band inverse synthetic aperture radar fusion imaging[J]. IET Radar, Sonar & Navigation, 2021, 15 (2): 167- 180.
14	田彪, 刘洋, 徐世友, 等. 基于几何绕射理论模型高精度参数估计的多频带合成成像[J]. 电子与信息学报, 2013, 35 (7): 1532- 1539.
	TIAN B , LIU Y , XU S Y , et al. Multi-band fusion imaging based on high precision parameter estimation of geometrical theory of diffraction model[J]. Journal of Electronics & Information Technology, 2013, 35 (7): 1532- 1539.
15	BAI X R , ZHOU F , WANG Q , et al. Sparse subband imaging of space targets in high-speed motion[J]. IEEE Trans.on Geoscience and Remote Sensing, 2013, 51 (7): 4144- 4154. doi: 10.1109/TGRS.2012.2227756
16	WANG T J , ZHANG Y , ZHAO H , et al. Multiband radar signal coherent processing algorithm for motion target[J]. Interna-tional Journal of Antennas and Propagation, 2017, 2017, 4060789.
17	贠龄童, 赵宏钟, 杜梦园. 动目标异源雷达相参配准研究[J]. 雷达科学与技术, 2018, 16 (3): 303- 310.
	YUN L T , ZHAO H Z , DU M Y . Research on coherent compensation method of moving target under multiple radars[J]. Radar Science and Technology, 2018, 16 (3): 303- 310.
18	HU P J , XU S Y , WU W Z , et al. Sparse subband ISAR imaging based on autoregressive model and smoothed ℓ⁰ algorithm[J]. IEEE Sensors Journal, 2018, 18 (22): 9315- 9323.
19	呼鹏江. 空天目标逆合成孔径雷达精细成像技术研究[D]. 长沙: 国防科学技术大学, 2018.
	HU P J. Research on inverse synthetic aperture radar fine imaging technology of aerospace targets[D]. Changsha: National University of Defense Technology, 2018.
20	BIDON S, SAVY L, DEUDON F. Fast coherent integration for migrating targets with velocity ambiguity[C]//Proc. of the IEEE Radar Conference, 2011: 027-032.
21	DIPIETRO R C, FANTE R L, PERRY R P. Space-based bistatic GMTI using low resolution SAR[C]//Proc. of the IEEE Aerospace Conference, 1997: 181-193.
22	ZHANG S S, TAO Z, TENG L, et al. Dim target detection based on Keystone transform[C]//Proc. of the IEEE International Radar Conference, 2005: 889-894.
23	RICHARDS M A. The Keystone transformation for correcting range migration in range-doppler processing[EB/OL]. [2020-12-08]. http://users.ece.gatech.edu/mrichard/Keystone.pdf.
24	OPPENHEIM A V, WILLSKY A S, NAWAB S H. Signals and systems[M]. 2nd ed. Upper Saddle River: Prentice Hall, 1996.
25	NGUYEN V K , TURLEY M D E , FABRIZIO G A . A new data extrapolation approach based on spectral partitioning[J]. IEEE Signal Processing Letters, 2016, 23 (4): 454- 458.
26	DE W S , BROERSEN P M T . The burg algorithm for segments[J]. IEEE Trans.on Signal Processing, 2000, 48 (10): 2876- 2880.
27	NAISHADHAM K , PIOU J E . A robust state space model for the characterization of extended returns in radar target signatures[J]. IEEE Trans.on Antennas and Propagation, 2008, 56 (6): 1742- 1751.
28	WANG Y W , LI J , STOICA P . Spectral analysis of signals: the missing data case[M]. San Rafael: Morgan & Claypool, 2006: 13- 48.
29	XIONG D , WANG J L , ZHAO L Z , et al. BSBL-based multiband fusion ISAR imaging[J]. The Journal of Engineering, 2019, 2019 (19): 6039- 6042.
30	MARPLE S L . Digital spectral analysis[M]. 2nd ed Garden City: Dover Publications, 2019: 191- 206.

信号序号	带宽/MHz	载频/GHz	脉冲宽度/μs	PRI/μs	目标时延/μs与速度/(m·s^-1)	采样频率/MHz
1	100	1	20	800	(1, 200)	1.2×130
2	130	2	24	500	(1, 200)	1.2×130

信号序号	带宽/MHz	载频/GHz	脉冲宽度/μs	PRT/μs	目标时延/μs与速度/(m·s^-1)	采样频率/MHz
1	100	1	20	800	(1, 200) (1+δ, 200) (1+5δ, 150)	1.2×130 1.2×130 1.2×130
2	130	2	24	500	(1, 200) (1+δ, 200) (1+5δ, 150)	1.2×130 1.2×130 1.2×130

信号	脉冲数	带宽/MHz	载频/MHz	脉冲宽度/μs	PRI/ms	采样频率/GHz
实测数据	7	B	f	T	P	1.5
模拟数据	7	B	f+8	T－10	P－0.5	1.5
