动态超表面天线阵列混合发射波束成形

doi:10.12305/j.issn.1001-506X.2022.03.03

系统工程与电子技术 ›› 2022, Vol. 44 ›› Issue (3): 730-736.doi: 10.12305/j.issn.1001-506X.2022.03.03

动态超表面天线阵列混合发射波束成形

陈玉香, 陈胜垚*, 冉龙瑶, 席峰

南京理工大学电子工程与光电技术学院, 江苏南京 210094

收稿日期:2021-05-08 出版日期:2022-02-25 发布日期:2022-03-10
通讯作者: 陈胜垚
作者简介:陈玉香(1997—), 女, 硕士研究生, 主要研究方向为雷达信号处理|陈胜垚(1985—), 男, 副教授, 博士, 主要研究方向为雷达信号处理、压缩感知|冉龙瑶(1998—), 女, 硕士研究生, 主要研究方向为雷达信号处理|席峰(1980—), 男, 副教授, 博士, 主要研究方向为雷达信号处理、统计信号处理、压缩感知
基金资助:
国家自然科学基金(61571228)

Hybrid transmit beamforming for dynamic metasurface antenna array

Yuxiang CHEN, Shengyao CHEN*, Longyao RAN, Feng XI

School of Electronic and Optical Engineering, Nanjing University of Science and Technology, Nanjing 210094, China

Received:2021-05-08 Online:2022-02-25 Published:2022-03-10
Contact: Shengyao CHEN

摘要/Abstract

摘要：

动态超表面天线(dynamic metasurface antenna, DMA)阵列是一种可实现模拟-数字混合波束成形的新型阵列结构, 其模拟波束成形部分由DMA实现, 系统实现的复杂度低。本文研究基于DMA阵列的混合发射波束成形, 核心问题是模拟与数字发射权值的联合优化。该文基于交替优化思想将模拟-数字权值联合优化问题分解为多个子问题, 提出一种基于交替方向乘子法(alternating direction multiplier method, ADMM)的求解方法。该方法首先引入辅助变量简化问题模型, 然后通过交替优化求解辅助变量、数字权值和模拟权值。其中, 辅助变量求解具有闭式表达式, 数字权值与模拟权值解耦合后利用ADMM分别求解。仿真结果表明, DMA阵列与典型的唯相混合阵列和恒模约束下的唯相阵列相比, 具有更好的混合发射波束成形性能。

关键词: 动态超表面天线, 发射波束成形, 混合波束成形, 交替方向乘子法

Abstract:

Dynamic metasurface antenna (DMA) array is a novel structure to implement the analog-digital hybrid beamforming, in which the analog beamforming part is realized by the DMA and thus the system complexity is low. The DMA array-based hybrid transmit beamforming is studied, and the core problem is the joint optimization of analog and digital transmit weights. In virtue of alternating optimization, this paper decomposes the joint optimization problem into several sub-problems and then proposes a solving method by using alternating direction multiplier method (ADMM). The proposed method simplifies the problem model by introducing auxiliary variables firstly, and then resolves the auxiliary variables, digital weights and analog weights by alternating optimization. Among them, the solution of auxiliary variables has a closed-form expression, after decoupling, the digital weights and analog weights are solved separately by ADMM, respectively. Simulation results show that the proposed DMA array has better performance of hybrid transmit beamforming than the typical phase-only hybrid array and phase-only array under constant modulus constraints.

Key words: dynamic metasurface antenna (DMA), transmit beamforming, hybrid beamforming, alternating direction multiplier method (ADMM)

中图分类号:

TP911.7

陈玉香, 陈胜垚, 冉龙瑶, 席峰. 动态超表面天线阵列混合发射波束成形[J]. 系统工程与电子技术, 2022, 44(3): 730-736.

Yuxiang CHEN, Shengyao CHEN, Longyao RAN, Feng XI. Hybrid transmit beamforming for dynamic metasurface antenna array[J]. Systems Engineering and Electronics, 2022, 44(3): 730-736.

图/表 7

图1

图2

图3

图4

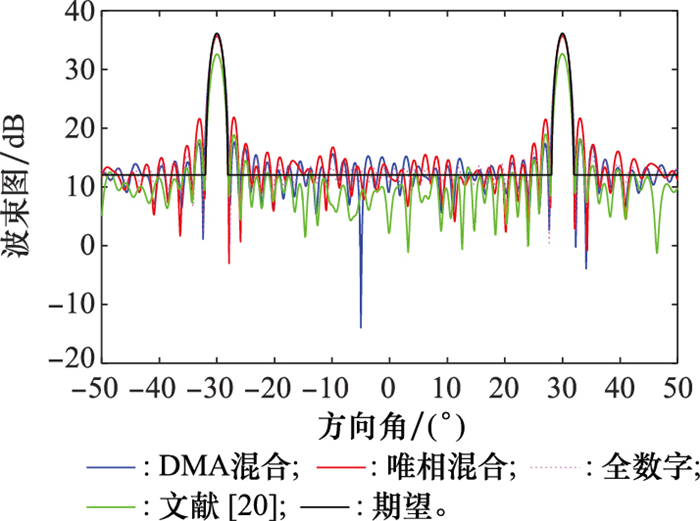

图5

图6

图7

参考文献 20

1	SMITH D R , YURDUSEVEN O , MANCERA L P , et al. Analysis of a waveguide-fed metasurface antenna[J]. Physical Review Applied, 2017, 8 (5): 054048. doi: 10.1103/PhysRevApplied.8.054048
2	HODGE J A, MISHRA K V, ZAGHLOUL A I. Reconfigurable metasurfaces for radar and communications systems[C]//Proc. of the Asia-Pacific Radio Science Conference, 2019.
3	SLEASMAN T , BOYARSK M , IMANI M F , et al. Design considerations for a dynamic metamaterial aperture for computational imaging at microwave frequencies[J]. Journal of the Optical Society of America B, 2016, 33 (6): 1098- 1111. doi: 10.1364/JOSAB.33.001098
4	BOYARSKY M , SLEASMAN T , PULIDO-MANCERA L , et al. Synthetic aperture radar with dynamic metasurface antennas: a conceptual development[J]. Journal of the Optical Society of America A, 2017, 34 (5): 22- 36. doi: 10.1364/JOSAA.34.000A22
5	JOHNSON M C , BRUNTON S L , KUNDTZ N B , et al. Sidelobe canceling for reconfigurable holographic metamaterial antenna[J]. IEEE Trans.on Antennas and Propagation, 2015, 63 (4): 1881- 1886. doi: 10.1109/TAP.2015.2399937
6	SHLEZINGER N , DICKER O , ELDAR Y C , et al. Dynamic metasurface antennas for uplink massive MIMO systems[J]. IEEE Trans.on Communications, 2019, 67 (10): 6829- 6843. doi: 10.1109/TCOMM.2019.2927213
7	ELBIR A M , MISHRA K V . Joint antenna selection and hybrid beamformer design using unquantized and quantized deep lear-ning networks[J]. IEEE Trans.on Wireless Communications, 2020, 19 (3): 1677- 1688. doi: 10.1109/TWC.2019.2956146
8	SOHRABI F , WEI Y . Hybrid digital and analog beamforming design for large-scale antenna arrays[J]. IEEE Journal of Selected Topics in Signal Processing, 2016, 10 (3): 501- 513. doi: 10.1109/JSTSP.2016.2520912
9	IOUSHUA S S , ELDAR Y C . A family of hybrid analog-digital beamforming methods for massive MIMO systems[J]. IEEE Trans.on Signal Processing, 2019, 67 (12): 3243- 3257. doi: 10.1109/TSP.2019.2911255
10	YU X , SHEN J C , ZHANG J , et al. Alternating minimization algorithms for hybrid precoding in millimeter wave MIMO systems[J]. IEEE Journal of Selected Topics in Signal Processing, 2016, 10 (3): 485- 500. doi: 10.1109/JSTSP.2016.2523903
11	SHLEZINGER N , ALEXANDROPOULOS G C , IMANI M F , et al. Dynamic metasurface antennas for 6G extreme massive MIMO communications[J]. IEEE Wireless Communications, 2021, 28 (2): 106- 113. doi: 10.1109/MWC.001.2000267
12	XU Z Y, LIU F, DIAMANTARAS K, et al. Learning to select for MIMO radar based on hybrid analog-digital beamforming[EB/OL]. [2021-05-01]. http://arxiv.org/abs/2101.06837v2.
13	LIU F, MASOUROS C. Hybrid beamforming with sub-arrayed MIMO radar: enabling joint sensing and communication at mmWave band[C]//Proc. of the International Conference on Acoustics, Speech, and Signal Processing, 2019: 7770-7774.
14	LIU F , MASOUROS C , PETROPULU A , et al. Joint radar and communication design: applications, state-of-the-art, and the road ahead[J]. IEEE Trans.on Communications, 2019, 68 (6): 3834- 3862.
15	BOYARSKY M , IMANI M F , SMITH D R . Grating lobe suppression in metasurface antenna arrays with a waveguide feed layer[J]. Optics Express, 2020, 28 (16): 23991- 24004. doi: 10.1364/OE.398440
16	CHEN S Y, SIMA B, XI F, et al. Super-resolution DOA estimation using dynamic metasurface antenna[C]//Proc. of the 14th European Conference on Antennas and Propagation, 2020.
17	YU X X , CUI G L , YANG J , et al. Wideband MIMO radar beampattern shaping with space-frequency nulling[J]. Signal Processing, 2019, 160, 80- 87. doi: 10.1016/j.sigpro.2019.02.022
18	ALDAYEL O , MONGA V , RANGASWAMY M . Tractable transmit MIMO beampattern design under a constant modulus constraint[J]. IEEE Trans.on Signal Processing, 2017, 65 (10): 2588- 2599. doi: 10.1109/TSP.2017.2664040
19	BOYD S , PARIKH N , CHU E , et al. Distributed optimization and statistical learning via the alternating direction method of multipliers[J]. Foundations and Trends in Machine Learning, 2010, 3 (1): 1- 122. doi: 10.1561/2200000016
20	LIU Y , JIU B , LIU H W . ADMM-based transmit beampattern synthesis for antenna arrays under a constant modulus constraint[J]. Signal Processing, 2020, 171, 107529. doi: 10.1016/j.sigpro.2020.107529
